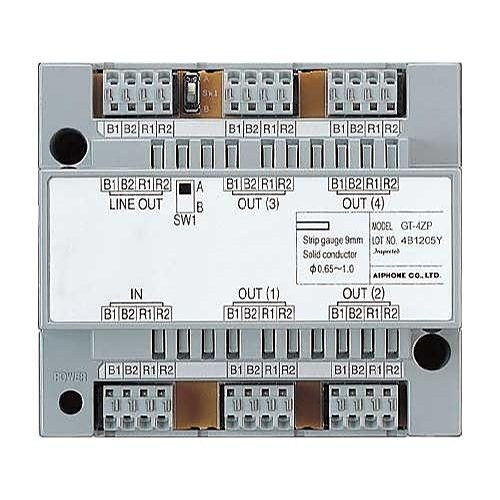

The high performance Aiphone GT-4ZP GT Series 4-Way Video and Power Distribution Adaptor allows one PS-2420UL to power up four GT-1C7W app-enabled tenant stations. The GT-4ZP replaces existing GT-4Z adaptors in a standard GT system, and requires 1 PS-2420UL per GT-4ZP. Each GT-4ZP includes 4 power jumpers (GTW-24J) that are to be installed on the GT-1C7W between the B1/B2 and +/- terminals, which provides power to the GT-1C7W without having to install a local PS-2420UL for each tenant station.

Features:

• 4-Way Video and Power Distribution
• Supports up to 4 GT-1C7W Stations
• Compatible with PS-2420UL Power Supply
• Replaces Existing GT-4Z Adaptors
• Includes 4 Power Jumpers for Easy Installation
• No need for a local PS-2420UL for each station

Dimensions: 4.3" H x 4.8" W x 2.3" D inches

NEW IN THE BOX
