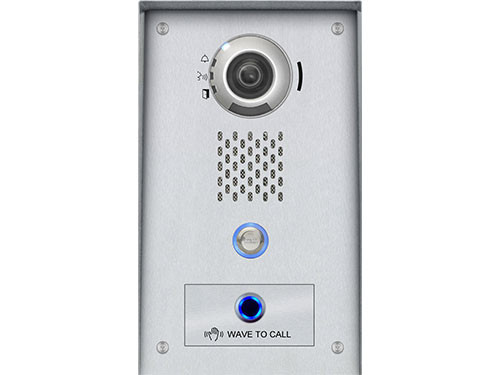

The advanced Aiphone IX-DVF-HW Video Door Station with Hand Wave Call Button is weather-resistant and includes the SBX IXDVFRA surface-mount box. It also includes the PS-POE to power the sensor. It connects to a network using Cat-5e/6 cable and is SIP compliant.The IX-DVF-HW is equipped with a 1.23 megapixel fixed color camera. The camera angle can be vertically adjusted using a lever on the back of the station. The video can be streamed to third-party devices using ONVIF Profile S or RTSP. Audio and video can be captured on a microSD™ card. The IX-DVF-HW can be programmed to call up to 2 stations. There are three call-level selections. The IX-DVF-HW has a 6? output that can be used for paging or communication. Two contact outputs can be programmed to trigger during door release, when the 6? output is used, or based on the status of the station. There are six trigger inputs, with one used for the touchless sensor. Sound files can be uploaded for custom messages to be played during certain functions (door release, call placed, communication start, error message). The stations have audible and visual indications for calling, communication, and door release.

Features:

• Touchless sensor
• SIP 2. compliant
• 82.3af PoE with PoE pass through (82.3at Type 2 PoE+)
• White LED for low-light illumination
• ONVIF Profile S compliant
• Camera vertical adjustment +15º, º, or -8º (manual)
• Slot for microSD™ card (not provided by Aiphone)
• Weather and vandal-resistant
• 2 contact outputs/6 trigger inputs
• Stainless steel

Dimensions: 11.7" H x 7" W x 2" D inches

NEW IN THE BOX
