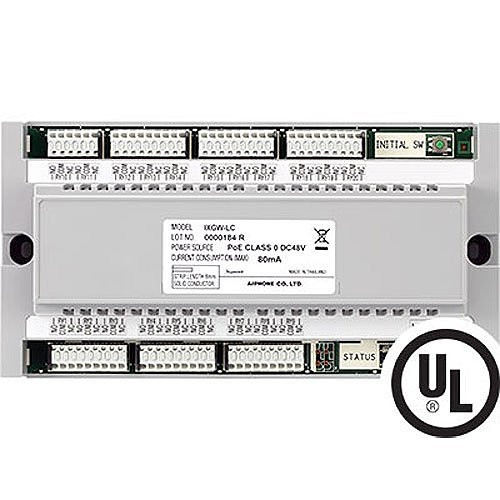

The high performance Aiphone IXGW-LC Elevator Lift Control Adapter is a lift control adaptor for the IXG Series IP multi-tenant system. This adaptor allows for integration to the elevator control system, allowing the elevator to be called to specific floors based on which tenant opened the door. The IXGW-LC is equipped with 2 Form C relays and up to 16 adaptors can be included in a building. Each relay can be configured and assigned to a specific entry, tenant station, or app. Individual relay contacts can be activated when a specific tenant activates door release on a specific entry panel allowing the elevator to open and go to a specific floor.

Features:

• PoE compliant
• 2 Form C relays
• Relay rating (24V AC/DC, 5mA)
• Max of 16 adaptors per building

Dimensions: 7.8" x 3.8" H x 1.6" D inches

NEW IN THE BOX
