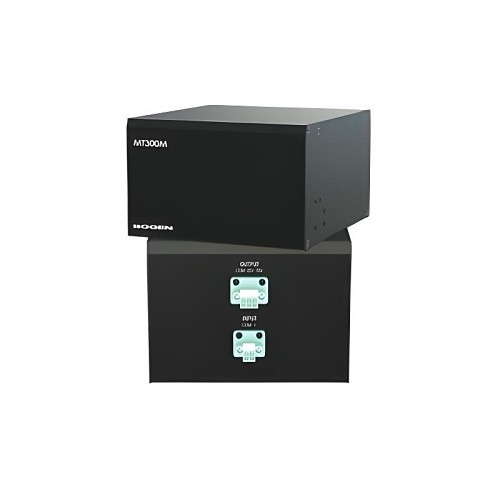

The high performance Bogen MT300M Matching Transformer Module 250W, 25V and 70V is a optimize a background music/paging system's performance when driving multiple 70.7V transformer-based speakers using Bogen direct drive Class D audio power amplifiers - especially in retrofit installations where the loudspeakers and wiring are being reused, and the overall wire lengths, wire gauge, and loudspeaker power tap settings are unknown. The MT300M Matching Transformer Module works in applications where the amplifier’s power does not exceed 250W.

Features:

• 250-W maximum load capacity
• 1 Two-pin pluggable Phoenix-style input connector
• 1 three-pin pluggable Phoenix-style output connector
• 25V and 70V audio outputs (only one can be used at a time)
• Wall mount ears included optional rack mount bracket kit (NQ-RMK02) available

Dimensions: 5-1/2” W x 6-1/2” H x 3-1/2”D inches

NEW IN THE BOX
