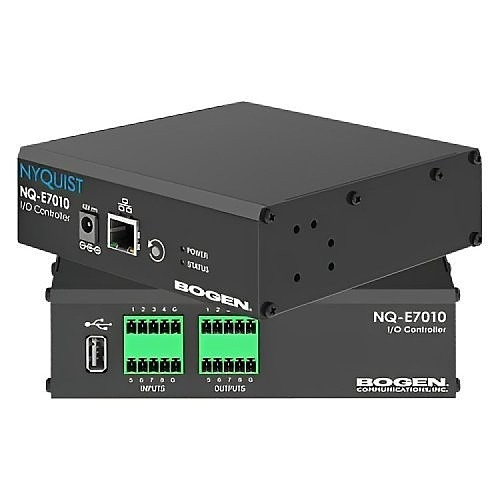

The efficient Bogen NQ-E7010 Nyquist Input/Output Controller provides eight (8) dry contact closure inputs to monitor events/triggers from 3rd-party systems/devices such as Fire Alarms, Lockdown buttons, and sensors. It also provides eight (8) open-collector type relay driver outputs used to initiate actions such as clock correction (e.g., generating sync pulses) on 3rd party systems and devices.

Features:

• 10/100 Ethernet
• PoE Class-3 (IEEE 802.3af compliant)
• 8 x dry contact closure inputs ( with 1 ground per 4 inputs)
• 8 x relay driver outputs (500mA max per ground sink)
• USB 2.0 host port, Type A connector (future use)
• May be wall or shelf mounted: 5.6” W x 5.4” D x 1.7” H (2” with feet)
