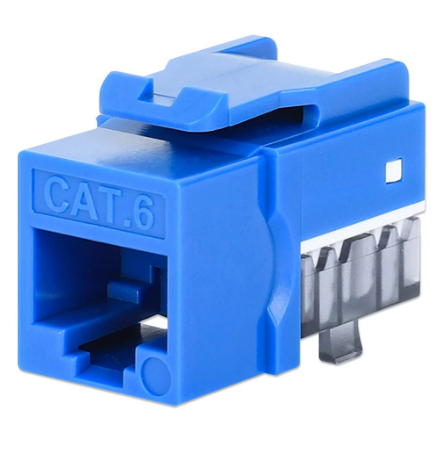

The high quality Intellinet 772136 Cat6 Slim Keystone Jack with Punch-Down Stand, Blue, 25-Pack, IKJ-C6U-PD-BL-25P, for Easy Fit in High-density Patch Panels, UTP, for Solid Wire, Gold-plated Contacts.

Features:

• Slimline design, only 16.2 mm (0.64 in.) wide for comfortable side-by-side deployment in blank patch panels, wall plates or surface connection boxes
• Cat6 RJ45 module with 10G / 1G and 250 MHz in accordance with ISO/IEC 11801
• Gold-plated contacts for corrosion-free connections
• Supports solid wire with AWG 26/1 to 23/1
• LSA punch-down type, compatible with 110, Krone, and other punch-down tools
• Ideal for HDBaseT and PoE applications up to IEEE802.3bt / PoE++ / 4PPoE / Ultra PoE
• Standard 8P8C design, compatible with all network RJ45 connections
• Compatible and color-coded with T568A and T568B
• Durable and fire-resistant housing
• The included punch-down stand provides a firm base for cutting and terminating with protection from sharp impact tools
• 25 dust covers and cable ties included
• UL approved

Electrical

• Insulation resistance: ≥500 MOhm
• Dielectric withstanding voltage: 1,000 V DC/750 V AC
• Contact resistance: ≤20 MOhm
• DC resistance: ≥0.3 Ohm
• Current rating: 1.5 A



Physical

• Dimensions per module (L x W x H): 1.27 x 0.65 x 0.87 in. (32.3 x 16.5 x 22 mm)
• Net weight per module: 0.26 oz. (7.5 g )
• Gross weight 25-pack: 0.6 lbs. (270 g)

Package Contents

• 25 x Cat6 Slim Punch-Down Keystone Jack
• 25 x dust cover
• 25 x cable tie
• 1 x punch-down stand
• Instructions

NEW IN THE BOX
