Ultralinx 66 Block 75v Clamp

Price:

$33.60

SKU:

ITW-UP3B-75

Brand:

Itw Linx

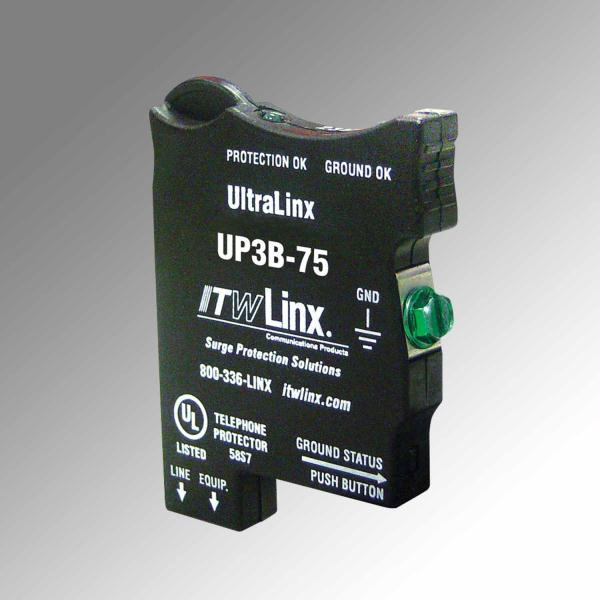

Ultralinx 66 Block 75v Clamp
66 Block Primary Or Secondary 75v Surge Protector
Ul Primary And Secondary Listed With 350ma Fuse For Voice/fax/modem Line (75v)
Dual Indicator Lights: Protection Ok And Ground Connection Ok
Solidstate Protection
Single Pair Protection: Protect Only The Lines Requiring Protection
Ideal For Retrofit Applications: Just Remove The Bridging Clips From The Block And Replace Them With The Protector Add The Ground Connection And The Pair Is Connected
Grounding Requirements: Fieldinstalled Solid Copper Wire
Recommended Grounding Impedance: <0.5 Ohm
Fuse Rating: 350ma (1.6 Ohms)
Signal Perfect Circuitry
Clamping Level: 75v
Response Time: 15 Nanoseconds
Capacitance: <50pf
Suppression Modes: Metallic And Longitudinal
Wires Protected: 2wires 1 Pair
Termination Type: 66 M Blocks
Brand: Itw Linx
