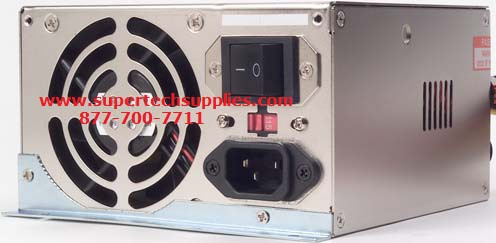

The high performance Bogen MC512B MC2000 5/12-Volt Power Supply with Switch is the main power supply for the Multicom 2000 system. The Model MC512B power supply is a fully regulated, switching power supply providing an output voltage of +5V @ 15.0A, -5V @ 0.5A, +12V @ 5.5A, and -12V @ 0.5A. Ripple is less than 20mV p-p on any output. Power consumption is 75W maximum under normal operating conditions with an 120-station system. An internal 3A fuse protects the power supply. Two 6-position, 0.156 centerline, polarized connectors, and four 4-position polarized output connectors are provided.The power supply gets its power from the three-wire receptacle located in the MCBBC enclosure. It provides an on/off switch for the Multicom 2000 system when installed.

Architect and Engineer Specifications

• The Power Supply shall be a Bogen Model MC512B, fully current regulated, switching-type with output voltages of +5V @ 15.0A,-5V @ 0.5A,+12V @ 5.5A, and -12V @ 0.5A. Ripple shall be less than 20mV p-p on any output.
• A recessed 3-wire plug and power cord shall be supplied to connect with 120V AC line power and a power on/off switch.The unit shall consume a maximum of 75W under normal operation with system at full capacity. An internal 3.0A fuse shall provide protection.
• Two 6-position, 0.156 centerline connectors,and four 4-position polarized output connectors shall be provided for connection to the MCMF or MCRMF mainframe.

Dimensions: 5-7/8" W x 3-3/8" H x 6-1/2" D inches
Product Weight: 4 lb.
Power: 120V AC

Refurbished
