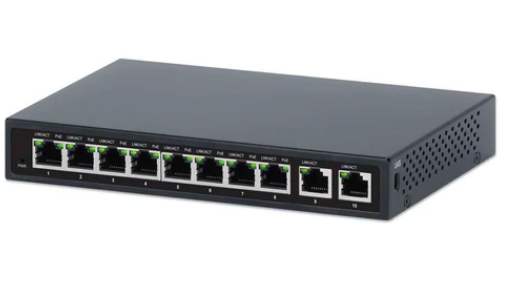

The modern Intellinet 562027 10-Port PoE+ Switch with 8 Gigabit Ethernet Ports and 2 SFP Uplinks, IPS-08G02-58W is an IEEE 802.3at/af (PoE+/PoE) Compliant, 58 W PoE Power Budget, Two 1G SFP Open Slots, VLAN and Flow Control Mode, Desktop or 19" Rackmount, Wall-mount Option.

Features:

• Provides up to eight PoE network devices with power and data
• Two RJ45 Gigabit uplink ports
• PoE power budget of 58 watts
• Power output up to 30 watts per port
• Manual VLAN mode to isolate ports 1 to 8 from each other while allowing them to communicate with uplink ports 9 and 10
• Manual Flow Control Off mode to disable the Gigabit Ethernet switch's flow-control function
• 20 Gbps switch fabric / switching capacity
• 10/100/1000 auto-sensing ports that automatically detect optimal network speeds
• Saves installation costs by delivering data and power over existing network cables
• Supports IEEE 802.3at and IEEE 802.3af-compliant PoE devices (e.g., wireless access points, VoIP phones, IP cameras)
• Supports IEEE 802.3at/af detection and short circuit, overload and high-voltage protection

Specifications:

Standards

• IEEE 802.3 (10Base-T Ethernet)
• IEEE 802.3ab (Twisted Pair Gigabit Ethernet)
• IEEE 802.3az (Energy Efficient Ethernet EEE)
• IEEE 802.3af (Power over Ethernet 802.3at Type 1)
• IEEE 802.3at (Power over Ethernet 802.3at Type 2)
• IEEE 802.3u (100Base-TX Fast Ethernet)
• IEEE 802.3x (flow control for full duplex mode)



General

• Media support:
  - 10Base-T Cat5e UTP/STP RJ45, 8 pin
  - 100Base-TX Cat5e UTP/STP RJ45, 8 pin
  - 1000Base-T Cat5e UTP/STP RJ45, 8 pin
• MAC address table: 4k
• Buffer memory: 1.5 Mbits
• Forwarding rate: 14.88 Mpps
• MTBF: >50k hours
• Backplane speed / switch fabric: 20 Gbps
• Switch architecture: store and forward
• Certifications: FCC, CE, RoHS, UKCA, NDAA



Modes (selectable via slide switch on front panel)

• Normal Mode
• VLAN Mode (Port Isolation)
• Flow Control Mode



LEDs

• Power
• Link/Activity
• PoE



Pinout RJ45 output ports
- Pin 1: DC (+)
- Pin 2: DC (+)
- Pin 3: DC (-)
- Pin 6: DC (-)

Power

• Included power adapter:
  - Input: 100.0 - 240.0 VAC, 50 - 60 Hz
  - Output: 53.5 V DC, 1.2 A, 64.2 W (max.)
  - Power consumption: 68.0 W (max.)



Physical

• Metal housing
• Dimensions (L x W x H): 3.94 x 7.48 x 1.1 in. (100 x 190 x 28 mm)
• Net weight: 1.1 lbs. (500 g)
• Gross weight: 2.51 lbs. (1.14 kg)
