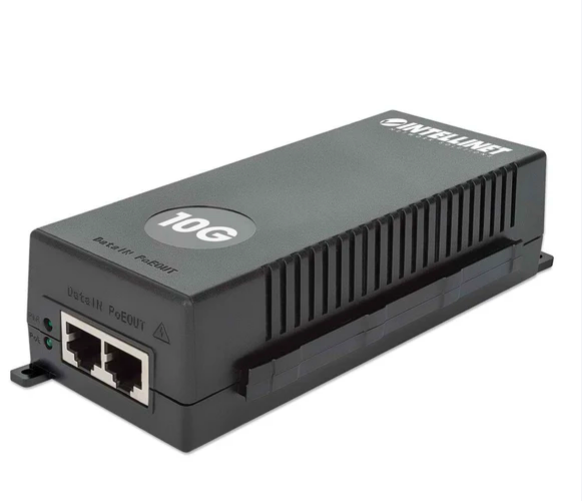

The fast Intellinet 561884 10G High-Power PoE+ Injector is a One 30 W Port, IEEE 802.3at/af Compliant, 100 Mbps/1G/2.5G/5G/10G, Plastic Housing, Wall-mount Option.

Features:

• Power over Ethernet with output up to 30 watts
• Ultra-fast 10GBASE-T RJ45 Ethernet port, IEEE 802.3an compliant
• Supports 100 Mbps/1/2.5/5/10 Gbps data rates

Specifications:

Standards

• IEEE 802.3 (10Base-T Ethernet)
• IEEE 802.3ab (Twisted Pair Gigabit Ethernet)
• IEEE 802.3af (Power over Ethernet 802.3at Type 1)
• IEEE 802.3at (Power over Ethernet 802.3at Type 2)
• IEEE 802.3u (100Base-TX Fast Ethernet)
• IEEE 802.3bz (2.5GBASE-T Ethernet)
• IEEE 802.3an (10GBASE-T Ethernet)



General

• Media support:
  - 100Base-TX Cat5/5e/6/6a/8 UTP/STP RJ45
  - 1000Base-T Cat5e/6/6a/8 UTP/STP RJ45
  - 2.5G/5GBase-T Cat6/6a/8 UTP/STP RJ45
  - 10GBase-T Cat6/6a/8 UTP/STP RJ45
• Ports:
  - One RJ45 10G data input port
  - One RJ45 PoE power + 10G data output port
• Certifications: CE, RoHS, FCC, UKCA, NDAA



PoE Pinout
- Pin 1: DC (-)
- Pin 2: DC (-)
- Pin 3: DC (+)
- Pin 6: DC (+)

LEDs

• Power
• PoE



Power

• Internal power supply:
  - Input: 100.0 - 240.0 VAC, 50 - 60 Hz
  - Output: 52.0 VDC, 0.58 A
  - PoE power budget: 30.0 watts (max.)
  - Power consumption: 33.0 watts (max.)



Physical

• Plastic housing
• Net weight: 230 g (0.51 lbs.)
• Gross weight: 430 g (0.95 lbs.)
• Operating temperature: 0 - 40°C (32 - 104°F)
• Storage temperature: -10 - 70°C (14 - 158°F)
• Operating humidity: 5 - 95% RH, non-condensing



Package Contents

• 10G High-Power PoE+ Injector
• Power cable, 1.5 m (5 ft.)
• Instructions

Dimensions (L x W x H): 5.75 x 2.44 x 1.57 inches
