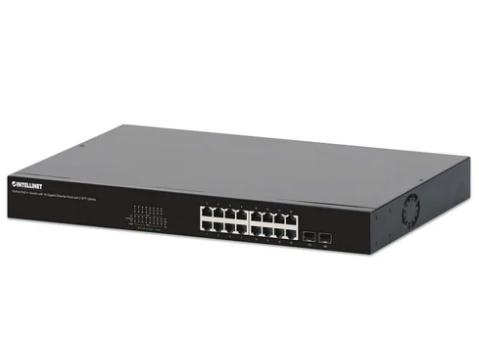

Intellinet 18-Port PoE++ Switch with 16 Gigabit Ethernet Ports and 2 SFP Uplinks, Part# 562232

  • Intellinet 18-Port PoE++ Switch with 16 Gigabit Ethernet Ports and 2 SFP Uplinks, Part# 562232
Price:
$418.39
SKU:
562232
Brand:
Shipping:
Calculated at checkout


Product Description

The efficient Intellinet 562232 18-Port PoE++ Switch with 16 Gigabit Ethernet Ports and 2 SFP Uplinks, IPS-16G02-440W, with 440 W PoE Power Budget, IEEE 802.3bt (4PPoE) Compliant, 16 PSE PoE++ Ports (90 W), Two 1G SFP Open Slots, and 19" Rackmount.

Features:

  • Provides up to 16 PoE network devices with power and data
  • Two small form-factor pluggable (SFP) GBIC module slots for 1G uplink capability
  • PoE power budget of 440 watts
  • Power output up to 90 watts per port
  • 36 Gbps switch fabric/switching capacity
  • Complies with the IEEE 802.3az (Energy Efficient Ethernet EEE) specification
  • Green Ethernet power-saving technology that deactivates unused ports and adjusts power levels based on the cable length
  • 10/100/1000 auto-sensing ports that automatically detect optimal network speeds
  • Supports IEEE 802.3bt/at/af-compliant PoE devices (wireless access points, VoIP phones, IP cameras and more)
  • Supports IEEE 802.3bt/at/af detection and short circuit, overload and high-voltage protection
  • Ideal for power-hungry IoT devices like motorized IP cameras, thin clients, PoE lighting and more
  • Saves installation costs by delivering data and power over existing network cables
  • Supports jumbo frames up to 9 kBytes
  • Store and forward switching architecture
  • IEEE 802.3x flow control for full duplex
  • Supports 8k MAC address entries with Auto-learning and Auto-aging
  • Buffer memory of 4.1 Mbits
  • Auto-MDIX and NWay auto-negotiation support on all RJ45 ports
  • Provides IEEE 802.1x port-based security
  • Smart, high-efficiency fan adjusts speed based on chip temperature for quiet and reliable cooling
  • Includes 19" rackmount brackets
  • Fully TAA-compliant
  • Three-year warranty

Power

  • Input: 100.0 - 240.0 VAC, 50 - 60 Hz, internal power supply
  • PoE power budget: 440.0 W (max.)
  • Power consumption: 480.0 W (max.)

Physical

  • Metal housing
  • Dimensions (L x W x H): 196 x 440 x 44 mm (7.71 x 17.32 x 1.73 in.)
  • Net weight: 3.06 kg (6.75 lbs.)
  • Gross weight: 3.91 kg (8.62 lbs.)

NEW IN THE BOX
