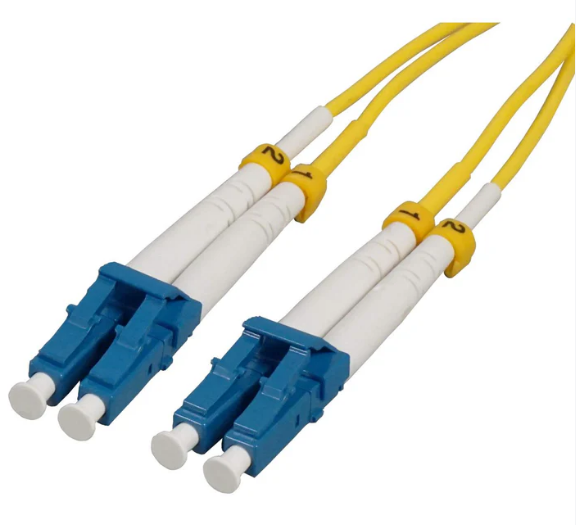

The well-made Intellinet 751643 1 m LC to LC UPC Fiber Optic Patch Cable, 2.0 mm, Duplex, OFNR, Singlemode BIF, Yellow is a 9/125 µm Bend-Insensitive Fiber Cable G.657. A1, 3.3 ft.

Features:

• Versatile Connectivity: Ideal for interconnect and cross-connect applications in entrance facilities, telecommunications rooms, data centers, and at the desk.
• UPC (Ultra Physical Contact) fiber connectors for a better surface finish and improved return loss.
• OS2 Single Mode Fiber: Uses OS2 single-mode fiber, providing superior performance and longevity for high-speed network connections.

Specifications:

• Connector type: LC UPC Duplex to LC UPC Duplex
• Fiber count: 2 Fibers
• Fiber grade: G.657.A1 (Compatible with G.652.D)
• Bend Radius: 10.0mm
• Fiber mode: Single Mode OS2 9/125μm
• Wavelength: 1310/1550nm
• Polarity: A (Tx) to B (Rx)
• Cable outer diameter (OD): 2.0mm
• Cable jacket: Riser (OFNR)
• Ferrule material: Ceramic (zirconia)
• Insertion loss: ≤0.3dB (1310nm/1550nm), typical ≤0.2dB
• Return loss: ≥55dB (1310nm/1550nm)
• Attenuation at 1310nm: ≤0.35dB/km
• Attenuation at 1550nm: ≤0.25dB/km
• Connector durability: 1000 insertion - extraction cycles min.
• Operation temperature range: -40°C +85°C
