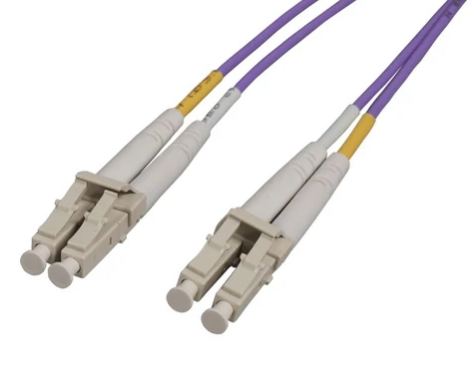

The high-performance Intellinet 752220 3 m LC to LC UPC Fiber Optic Patch Cable, 2.0 mm, Duplex, OFNR, OM4 Multimode, in color Violet is a 50/125 µm, Bend Insensitive Multimode Fiber (BIMMF), 9.8 ft long.

Features:

• Versatile Connectivity: Ideal for interconnect and cross-connect applications in entrance facilities, telecommunications rooms, data centers, and at the desk.
• UPC (Ultra Physical Contact) fiber connectors for a better surface finish and improved return loss.
• OM4 Multimode Fiber: Utilizes OM4 multimode fiber, providing superior bandwidth and exceptional performance for short to medium-range, high-speed data transmission in enterprise and data center networks.
• Low signal loss and high data rate - perfect for use in 40G Ethernet applications and beyond.
• Bend Insensitive Design: Features bend insensitive technology, reducing attenuation when bent or twisted, which enhances installation and maintenance efficiency
• Made from Corning optical fiber ultra-pure glass - Corning glass fiber optic cables offer excellent performance characteristics, including low attenuation and high bandwidth, which are crucial for high-speed and long-distance communication.
• Each cable ships with the test report included

Specifications:

• Connector type: LC UPC Duplex to LC UPC Duplex
• Fiber count: 2 Fibers
• Bend Radius: 45 mm
• Fiber mode: Multi Mode OM4 50/125μm
• Wavelength: 850/1310nm
• Polarity: A (Tx) to B (Rx)
• Cable outer diameter (OD): 2.0mm
• Cable jacket: Riser (OFNR)
• Ferrule material: Ceramic (zirconia)
• Insertion loss: typical ≤0.2dB
• Return loss: ≥20dB
• Attenuation @ 850 / 1300 nm (dB/km): ≤ 3,2 / ≤ 0,8
• Connector durability: 1000 insertion - extraction cycles min.
• Operation temperature range: -20°C to +75°C

A minimum order amount of $50 is required in order to Maintain Wholesale Price

NEW IN THE BOX
