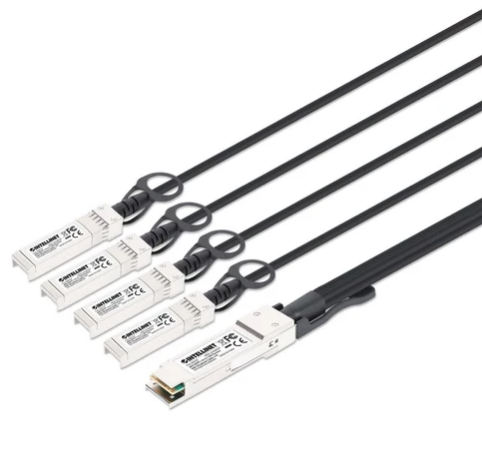

The fast Intellinet 509770 40G QSFP+ to 4 x 10G Passive DAC Breakout Cable, 3 ft., IDAC-40G-4X10G-3 is a One QSFP+ to Four SFP+, Cisco Compatible, MSA- and IBTA-compliant for Maximum Compatibility, Direct Attach Copper, AWG 30, in color Black.

Features:

• Breaks out a single 40 Gigabit Ethernet port into four separate 10 Gigabit Ethernet connections
• MSA-compliant for compatibility with leading switch manufacturers such as Cisco, Intellinet Network Solutions, ZyXEL, TP-Link, Ubiquiti and more (see specs)
• Equivalent to the Cisco DAC Cable QSFP-4SFP10G-CU1M
• IBTA-compliant to meet InfiniBand Trade Association standards, ensuring reliable performance and interoperability in Ethernet and InfiniBand networking environments
• Supports multiple protocols including QDR InfiniBand, SAS, and FCP for flexible deployment across networking and storage applications
• Passive Direct Attach Copper (DAC) twinax cable for cost-effective, low-latency, power-saving connections
• Significantly lower power consumption and price point than fiber optic cables
• Lower signal latency than RJ45 connections
• Simpler deployment than cables in optical transceivers with fewer components having to match
• Passive DAC as an ideal option in structured cabling for many short-distance applications
• Produces zero heat and can be used in high operating temperatures up to 70°C (158°F)
• Hot-swappable for seamless network upgrades or replacements
• Durable zinc die-cast SFP+ and QSFP+ connectors with pull-to-release latches for secure connections and easy removal
• Fully NDAA-compliant
• Three-year warranty

Specifications:

Standards and Certifications

• CE
• UKCA
• FCC
• RoHS
• REACH
• IEEE 802.3ba
• IEEE 802.3ae
• SFF-8436
• SFF-8431



General

• Power consumption: <0.1 W (per end)
• Power requirement: 3.3 V
• Applications: 40 Gigabit Ethernet
• Maximum data transfer rate: 40 Gbps total aggregated bandwidth (10.3125 Gbps per SFP+ channel)
• Minimum bend radius: 60 mm (2.36 in.)
• Impedance: 100 Ohm
• Length: 1 m (3 ft.)
• Net weight: 180 g (0.4 lbs.)
• Gross weight: 190 g (0.42 lbs.)



Compatible Brands

• Cisco, Intellinet Network Solutions, ZyXEL, TP-Link, Ubiquiti, D-Link, Edimax, Allnet, Allied Telesis, Digitus, KTI Networks, LevelOne, PLANET, Tenda, TRENDnet, ZTE, Avaya, Mikrotik, Enterasys, Finisar, Dell Force10, Riverstone, Fortinet and more



Connectors

• One QSFP+ male
• Four SFP+ males



Cable

• 30 AWG
• Type: passive copper, twinaxial
• Jacket material: PVC



Operating Environment

• Operation temperature: 0 - 70°C (32 - 158°F)
• Storage temperature: -40 - 80°C (-40 - 176°F)



Package Contents

• Passive DAC Twinax Breakout Cable
