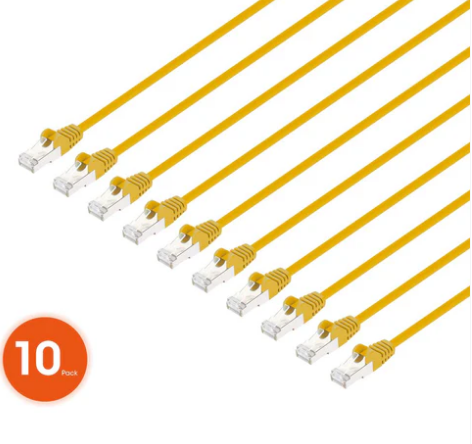

The high performance Intellinet 745505 IEC-C8-YLW-14-SLIM-10P, Cat8.1 U/FTP Slim Network Patch Cable, 14 ft., Yellow, 10-Pack, is a 40G, 2 GHz, 100% Copper, 30 AWG, RJ45, Stranded, Snag-free, and Gold-plated Contacts.

Features:

• Cat8.1 Class I with 40G / 25G and 2000 MHz in accordance with ISO/IEC 11801 and EN 50173-1
• Pure bare copper wire for maximum conductivity
• U/FTP with aluminum foil shielding around each pair
• 50 micro-inch gold-plated contacts for corrosion-free connections
• Snag-free boots to smoothly and easily pull the cable without damaging the RJ45 connectors
• Future-proof high-end connection; ideal for ToR and MoR cabling installations in data centers
• Ultra-thin format for more flexibility and simplified cable management in dense installations
• Ideal for HDBaseT and PoE applications up to IEEE802.3bt / PoE++ / 4PPoE / Ultra PoE
• Heavy-duty strain relief
• UL approved
• CM rating for in-wall Ethernet installations to safeguard against potential fire risks
• Compatible and color-coded with T568A and T568B
• Standard 8P8C design, compatible with all network RJ45 connections
• Fully backward compatible with previous cable categories, including Category 6a, 6, 5e and 5

Specifications:

Standards and Certifications

• UL
• ISO/IEC 11801
• EN 50173-1
• CE
• RoHS
• REACH
• 25GBase-T/40GBase-T
• ANSI/TIA-568.2-D



General

• Supported transfer speeds: up to 40 Gbps
• Max. operating frequency: 2000 MHz
• Mating cycles: ≥750



Connectors

• Two RJ45 male
• 50 micro-inch gold-plated contacts



Cable

• 30 AWG
• Shielding: U/FTP with aluminum foil shielding around each pair
• CM-rated jacket
• Wire: 100% pure bare copper (Cu)
• Jacket OD: 0.19 in. ±0.01 in. (4.8 mm ±0.3 mm)
• Conductor type: stranded
• Cable type: round
• Length: 14 ft. (5 m)
• Net weight per cable: 2.4 oz. (68 g)
• Gross weight 10-pack: 24.34 oz. (690 g)



Electrical

• Insulation resistance: ≥10 MOhm
• Dielectric withstanding voltage: 300 VDC



Environmental

• Operating temperature: 32 - 113°F (0 - 45°C)
• Storage temperature: 14- 158°F (-10 - 70°C)
• Operating humidity (non-condensing): 10 - 90% RH



Package Contents

• 10 x Cat8.1 U/FTP Slim Network Patch Cable
