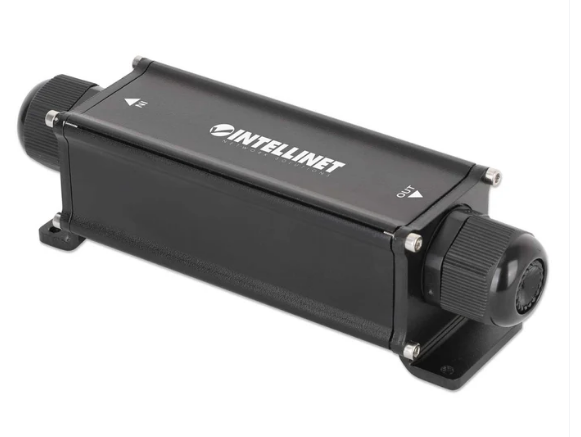

The rugged Intellinet 562348 Outdoor Gigabit PoE++ Extender, IPE-ODG65 is a IEEE 802.3bt (4PPoE) Compliant, One PD Port up to 65 W, IP67 Waterproof and Dustproof Aluminum Housing, Extends PoE from 100 m (328 ft.) to 200 m (656 ft), Daisy-chainable up to Five Units, Wall-Mountable.

Features:

• Doubles the maximum connection distance between PoE source and device from 100 m (328 ft.) to 200 m (656 ft.)
• Delivers up to 65 W to a connected PoE device
• IP67-rated aluminum housing, dustproof and waterproof with cable glands for secure outdoor installation
• Suitable for extreme operating temperatures of -40 to 75ºC (-40 to 167ºF)
• Daisy-chain up to five units for a total PoE distance of up to 600 m (1969 ft.)
• Compatible with IEEE 802.3bt/at/af-compliant powered devices (PD) such as network cameras, wireless access points, VoIP phones and more
• Supports 10/100/1000 Mbps data rates
• Auto-sensing PoE awareness to ensure that power is only sent to IEEE 802.3bt/at/af-compliant devices
• Short-circuit, overload and high-voltage protection
• Requires no additional power supply; draws power directly from the PoE input
• Compatible with IEEE 802.3bt/at/af-compliant PoE injectors and PoE switches (PSE)
• Built-in wall-mounting holes
• Supports 2k MAC address entries with Auto-Learning and Auto-Aging
• Fully NDAA-compliant
• Three-year warranty

Specifications:

Standards

• IEEE 802.3af (Power over Ethernet)
• IEEE 802.3at (High-Power PoE+ Power over Ethernet)
• IEEE 802.3bt (PoE++/4PPoE Power over Ethernet)
• IEEE 802.3 (10Base-T Ethernet)
• IEEE 802.3u (100Base-TX Fast Ethernet)
• IEEE 802.3ab (1000BASE-T Gigabit Ethernet)



General

• Media support:
  - 10Base-T Cat5e/6/6a UTP/STP RJ45
  - 100Base-TX Cat5e/6/6a UTP/STP RJ45
  - 1000Base-T Cat5e/6/6a UTP/STP RJ45
• Ports:
  - One RJ45 10/100/1000 Mbps PoE input port
  - One RJ45 10/100/1000 Mbps PoE output port
• MAC address table: 2k entries
• Certifications: FCC Class A, CE, RoHS, UKCA, NDAA



Power

• Input power: IEEE 802.3bt/at/af compliant PSE, 95.0 W max., 44.0 - 57.0 VDC
• PD output power: 65.2 W max., 44.0 - 57.0 VDC
• Daisy-chain details:
  - 65.2 W when using one PoE extender @ 200 m (656 ft.) combined cable length
  - 47.0 W when using two PoE extenders @ 300 m (984 ft.) combined cable length
  - 32.25 W when using three PoE extenders @ 400 m (1312 ft.) combined cable length
  - 23.0 W when using four PoE extenders @ 500 m (1640 ft.) combined cable length
  - 17.7 W when using five PoE extenders @ 600 m (1969 ft.) combined cable length



PoE Pinout
- Pin 1: DC (-)
- Pin 2: DC (-)
- Pin 3: DC (+)
- Pin 4: DC (+)
- Pin 5: DC (+)
- Pin 6: DC (+)
- Pin 7: DC (-)
- Pin 8: DC (-)

Physical

• IP67-rated aluminum housing: Fully protected against dust and water
• Operating temperature: -40 to 75°C (-40 to 167°F)
• Storage temperature: -45 to 80°C (-49 to 176°F)
• Operating humidity: 5 to 95% RH, non-condensing
• Storage humidity: 5 to 95% RH, non-condensing



Package Contents

• Outdoor Gigabit PoE++ Extender
• Instructions

Dimensions (L x W x H): 5.9 x 1.89 x 1.61 inches
