• 4K@30Hz resolution, full 3D video and Deep Color
• Supports video amplifier bandwidth up to 340 MHz, 3.4 Gbps per channel (10.2 Gbps total) for 4Kx2K displays

Specifications:

 Standards and Certifications

• HDCP 1.4
• DVI 1.0
• CTS 1.4a
• CE
• FCC
• RoHS



General

• Source-to-splitter range: up to 15 m (49 ft.)
• Splitter-to-display range: up to 15 m (49 ft.)
• Power: 5 VDC; AC power adapter, 0.9 m (2.9 ft.)



Connections

• One HDMI port (female), 19-pin (input)
• Two HDMI ports (female), 19-pin (output)
• One DC power female, OD 3.5 mm / ID 1.3 mm (input)



Signal Input/Output

• Input video signal: 0.5 – 1.0 V p-p
• Input DDC signal: 5 V p-p (TTL)
• Maximum single-link range: 3840x2160 at 30 Hz, 4096x2160 at 24 Hz resolution
• Output video: HDCP 1.4, DVI 1.0, supports 3D
• Frequency: 3.4 Gbps / 340 MHz



Video Resolutions

• DTV/HDTV: 480i/480p/576i/576p/720p/1080i/1080p/4K@30Hz



Physical

• LED indicators: power and port connection
• Dimensions: 75 x 49 x 16 mm (3 x 1.9 x 0.6 in.)
• Power adapter: 5 VDC / 1 A; 0.9 m (2.9 ft.)
• Weight: 42 g (0.09 lb.)
• Housing: plastic

Operating Environment

• Operation Temperature: 0 – 40°C (32 – 104°F)
• Storage Temperature: -20 – 60°C (-4 – 140°F)
• Humidity (noncondensing): 0 – 96%

Package Contents

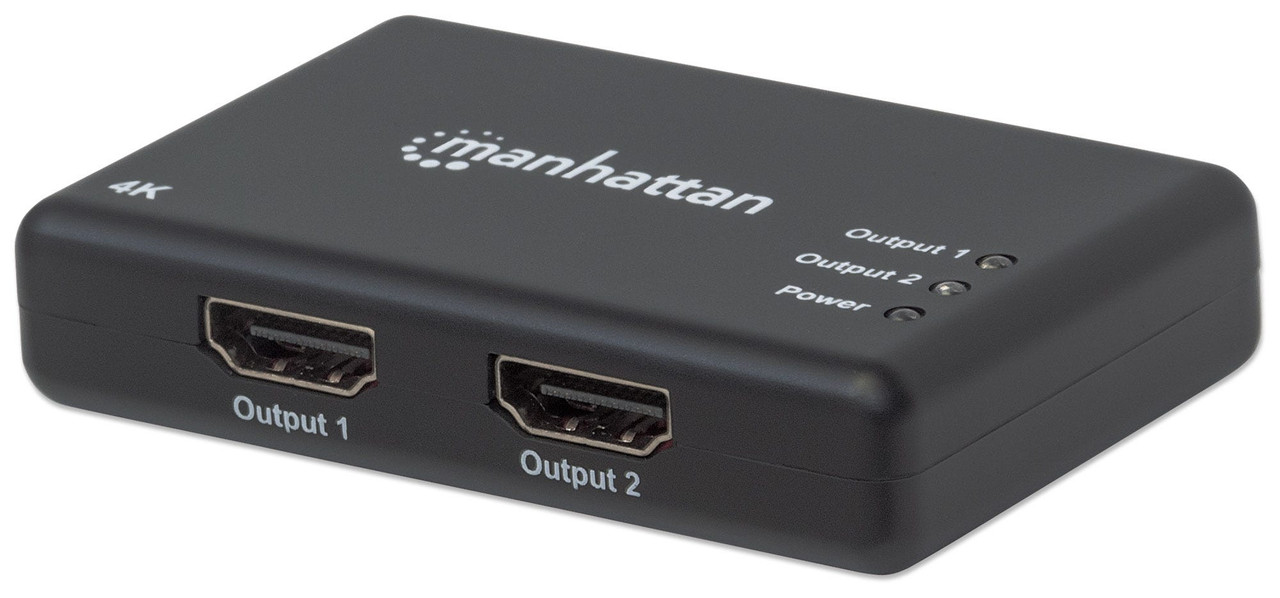

• 4K 2-Port HDMI Splitter
• AC power adapter
• Quick Instruction Guide

Dimensions: 2.95 (L) x 1.93 (W) x 0.63 (H) [inches]
