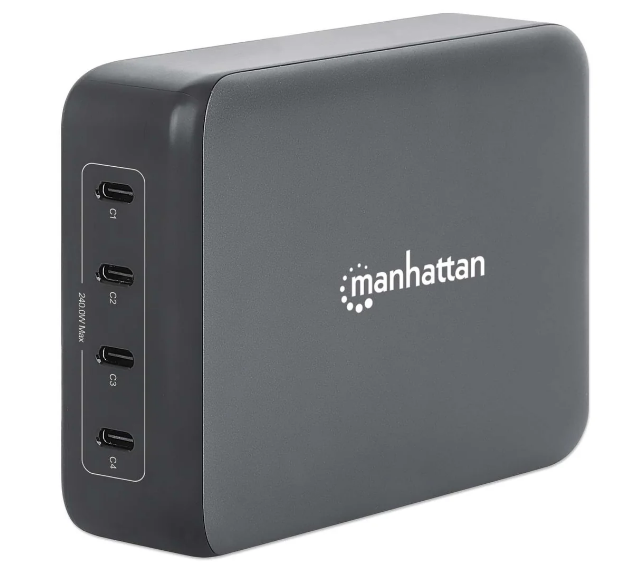

The versatile Manhattan 102667 4-Port GaN USB Power Delivery Charging Station - 240 W / PD 3.1 is a Four USB-C PD Ports with up to 140 W per Port, 240 W Total Output, Power Delivery 3.1, Black

Features:

• Ultra-powerful 4-in-1 fast-charger for up to four devices at once with a maximum power output of 240 W
• Advanced GaN (gallium nitride) technology for a more efficient, more compact, and safer charger
• Great for extremely power-hungry USB PD devices like laptop, MacBook® Pro, Ultrabook™, but also phone, tablet, and portable game console

Specifications:

Standards and Certifications

• CE
• RoHS
• REACH
• FCC
• UL
• UKCA



Electrical

• AC input: 100.0 - 240.0 V; 4.0 A; 50/60 Hz
• Voltage/current settings (maximum):
  - 5.0 V / 3.0 A
  - 9.0 V / 3.0 A
  - 12.0 V / 3.0 A
  - 15.0 V / 3.0 A
  - 20.0 V / 5.0 A
  - 28.0 V / 5.0 A
• Rated power: 240.0 W (max.)
• Maximum simultaneous output power on all ports in detail:
  - Single-port use - C1/C2/C3/C4: 140W (140W total)
  - Dual-port use: C1+C2 / C3+C4: 100W+40W / 40W+100W / 70W+70W (140W total), C1+C3 / C1+C4 / C2+C3 / C2+C4: 140W+100W (240W total)
  - Triple-port use: C1+C2+C3 / C1+C2+C4: 70W+70W+100W / 100W+40W+100W / 40W+100W+100W (240W total) , C2+C3+C4 / C1+C3+C4: 140W+60W+40W / 140W+40W+60W / 140W+50W+50W (240W total)
  - Quadruple-port use: C1+C2+C3+C4: 100W+40W+60W+40W / 100W+40W+40W+60W / 100W+40W+50W+50W / 70W+70W+50W+50W / 70W + 70W + 60W + 40W / 70W + 70W + 40W + 60W / 40W + 100W + 40W + 60W / 40W + 100W + 60W + 40W / 40W + 100W + 50W + 50W (240W total)
• Overshoot voltage: ≤5%
• Compatible devices include but are not limited to: MacBook® Pro 16", MacBook Air 2023 / 2022, ThinkPad® X1 / X1 Carbon, Dell® XPS 9380 / 9315, Google Pixelbook™
  Microsoft® Surface® Book 2, iPhone® 15, 15 Pro, 15 Pro Max, 15 Plus, iPhone 14, 14 Pro, 14 Pro Max, 13, 13 Pro, 13 Pro Max, 13 mini, SE 2022, 12, 12 mini, 12 Pro, 12 Pro Max, X, XS, XS Max, XR, 8 Plus, 8; iPad® 10.2’’ / iPad mini® 8.3’’ / iPad Pro® 12.9’’ / iPad Pro 10.5’’ / iPad Pro 11’’/ iPad mini 5, Samsung® Galaxy S24, S24 Ultra, S23, S23 Ultra, S22, S22 Ultra, S21, S20, S10, S10 Plus, S10E, S9, S9 Plus, Note 9, S8, S8 Plus, Note 8, S7 Edge, S7, S6 Edge plus, Note 5; Google Pixel™ 6, 6XL, 5, 5XL, 4, 4 XL, 3, 3 XL; LG V60 ThinQ, V50 ThinQ, V50, V40 ThinQ, V35, V30+, V30, G8 ThinQ, G8, G6; AirPods® and AirPods Pro®, devices from Huawei®, Asus®, Sony®, and more



Protection Characteristics

• Short-circuit (SCP)
• Overvoltage (OVP) with auto-recovery mode
• Overcurrent (OCP) — current limit: 130% (max)
• Over-temperature (OTP)



Dimensions (L x W x H): 4.8 x 3.46 x 1.26 inches
