• Boosts high-definition signal over HDMI cables for 4K performance up to 40 m (131 ft.)
• Delivers a sharp, clear signal from a PlayStation, Xbox, Blu-ray player, set-top box, satellite receiver, or another video source
• Supports 4K@60Hz resolution as well as HDR YUV 4:4:4, 3D HD video and Deep Color (24-bits/pixel)

Specifications:

 Standards and Certifications

• HDCP 2.2
• DVI 1.0
• CE
• FCC
• RoHS2



Connections

• One HDMI female (input)
  - Cable length: 5 – 25 m (15 – 80 ft.)
• One HDMI female (output)
  - Cable length: 1 – 15 m (3 – 50 ft.)
• One USB Micro-B (input), additional power



Signal Input/Output

• Input video signal: 0.5 – 1.0 V p-p
• Input DDC signal: 5 V p-p (TTL)
• Maximum single-link range: 4096x2160, 4K@60Hz
• Output video: HDCP 2.2, DVI 1.0
• Frequency: 6.0 Gbps / 600 MHz



Video Resolutions

• DTV/HDTV/UHDTV: 480i/480p/576i/576p/720p/1080i/1080p/4K@30Hz/4K@60Hz
• 1080p-capable up to 50 m
• 4K@30Hz-capable up to 40 m
• 4K@60Hz-capable up to 25 m

Physical

• Dimensions: 50 x 28 x 14 mm (2 x 1 x 0.6 in.)
• Weight: 16 g (0.04 lbs.) without cable
• Cable length: 0.7 m (28 in.)



Operating Environment

• Operation Temperature: 0 – 40°C (32 – 104°F)
• Storage Temperature: -20 – 60°C (-4 – 140°F)
• Humidity (noncondensing): 0 – 96%



Package Contents

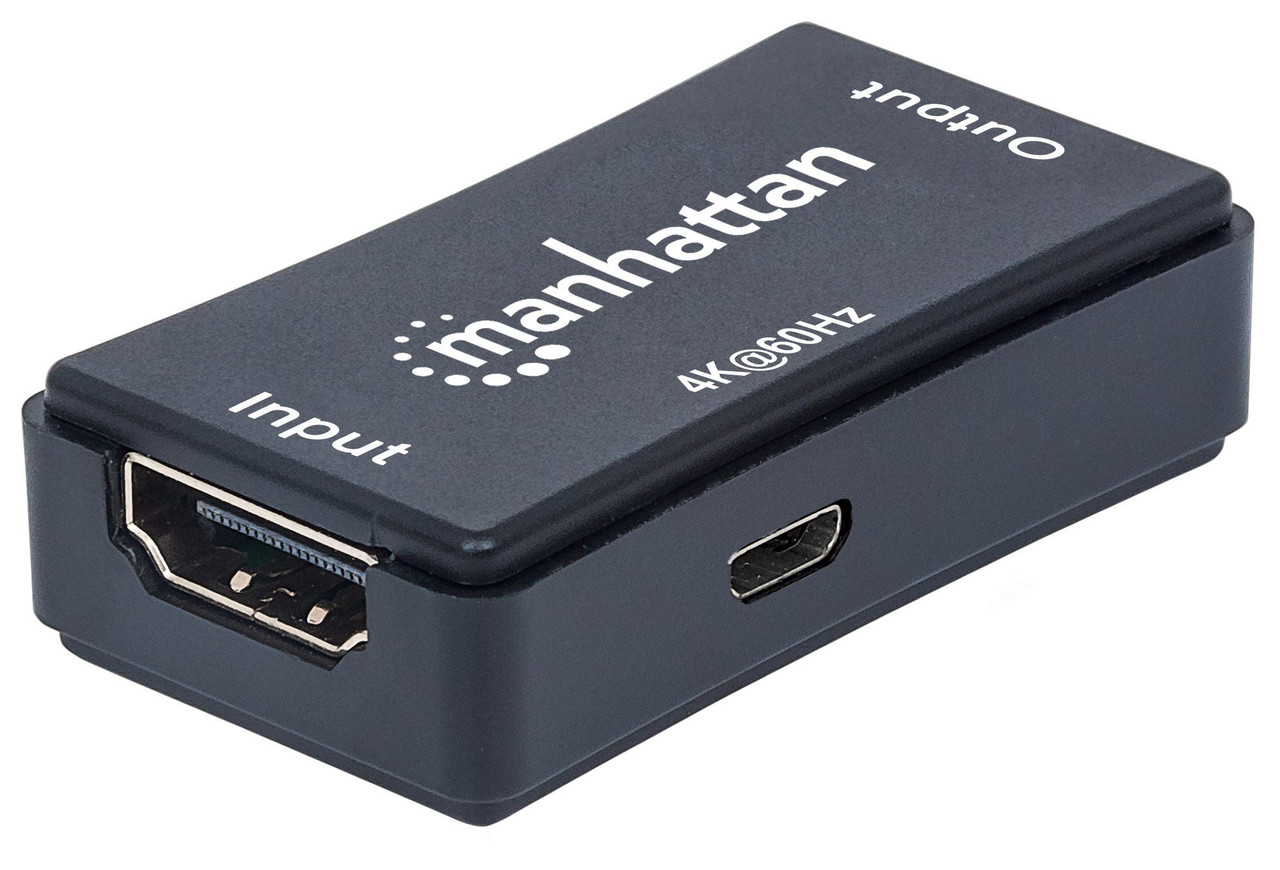

• 4K HDMI Repeater
• USB Micro-B Cable
• Quick Install Guide

Dimensions: 1.97 (L) x 1.10 (W) x 0.55 (H) [inches]
