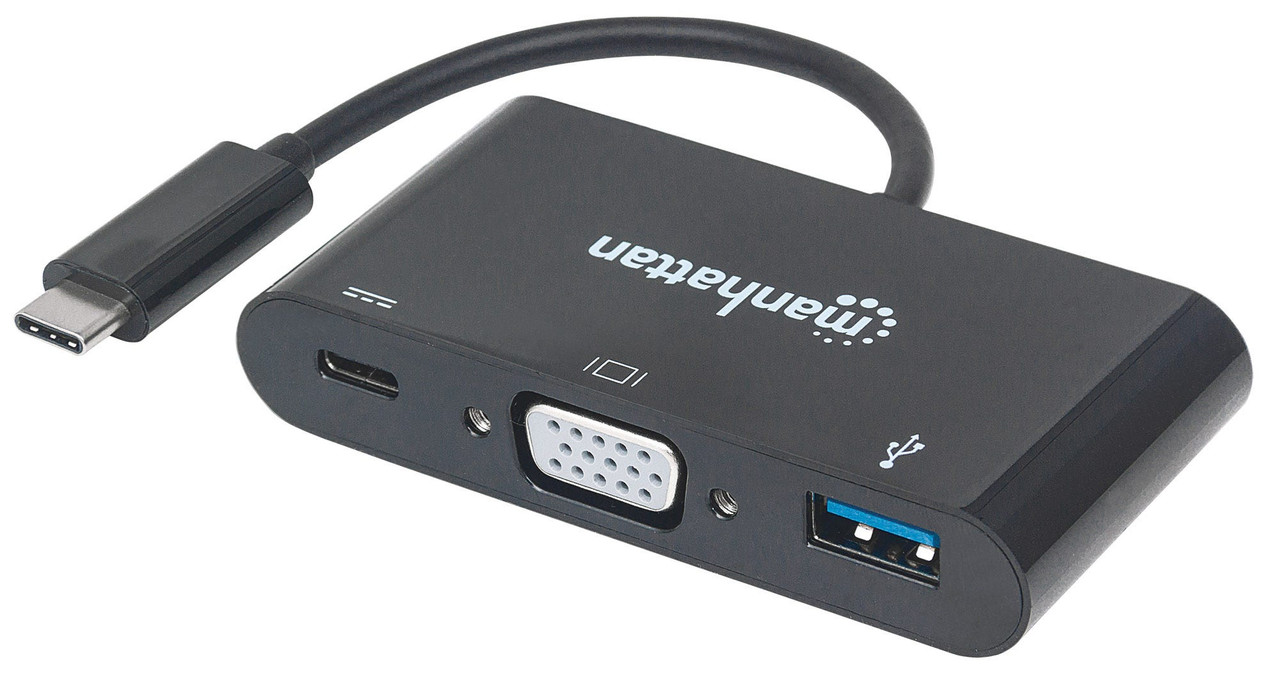

• Multi-function docking converter connects a USB type-C device to a VGA display, USB 3.0 port and type-C charging port
• Enjoy High-Definition (HD) video and audio on a VGA monitor, projector or other display device
• Mirror or Extended display modes support video resolutions up to 1920x1200, 1080p@60Hz, Full HD

Specifications:

Standards and Certifications

• USB 3.1
• CE
• FCC
• RoHS2
• WEEE



General

• Bus powered, up to 60 watts
• Overcurrent protection



Connections

• USB type-C, 24-pin, male
• VGA, 15-pin, female
• USB type-C, 24-pin, female
• USB type-A, 4-pin, female



Video Resolutions

• 640 x 480, 800 x 600, 1024 x 768, 1920 x 1200@60Hz



Physical

• 24-AWG cable gauge
• Mylar and aluminum shielding
• Withstanding voltage: 300 VDC
• Insulation resistance: 10 MΩ
• Conductive resistance: 5 Ω
• Thermal plastic casing
• Length: 8 cm (3 in.)
• Weight: 31 g (1.1 oz.)
• Shielded
• Housing: ABS plastic



Operating Environment

• Operation Temperature: 32 ~ 104°F (0 ~ 40°C)
• Storage Temperature: -4 ~ 140°F (-20 ~ 60°C)
• Humidity (noncondensing): 5 ~ 90%

System Requirements

• Windows XP/Vista/7/8.1/10 or Linux or Mac 9.x/10.x or above



Package Contents

• USB-C to VGA 3-in-1 Docking Converter with Power Delivery
• Quick Instruction Guide

Dimensions: 1.77 (L) x 1.69 (W) x 0.57 (H) inches
