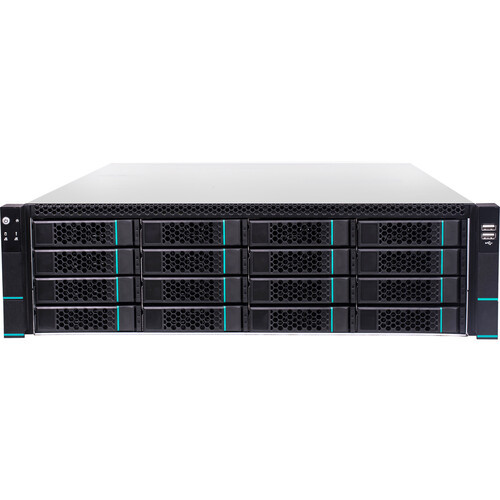

The high performance Speco SB16S96TB Storage Server for Speco Blue VMS Enterprise with 96TB HDD.

Features:

• Scalable Storage Solution
• 256TB HDD Capacity (Sold Separately)
• 16 x 3.5" SATA HDD Bays (Hot-Swappable)
• Management via Speco Blue VMS Enterprise
• Management via Web Browser
• Hardware RAID Controller
• Redundant Power Supply
• NDAA Compliant

SPECIFICATIONS:

• CPU: Intel Xeon Processor E3
• Operating System: Linux
• Memory: 8GB DDR4 ECC
• HDD: 3.5” SATA x 16 (hot-swappable)
• HDD Installation: Independent HDD bracket
• Capacity: Up to 256TB (max 16TB per HDD)
• RAID: Hardware RAID (Supports RAID 0, 1, 5, 6, 10)
• Expansion: (1)PCI-E3.0x16 (x8), (1)PCI-E3.0x8, (1)PCE-E3.0x8 (x4)
• Network Card: Integrated I210-AT dual gigabit network card
• IPMI: ASPEED AST2400BMC, indpendant IPMI interface (supports iKVM)
• Monitor Control: Integrated display controller
• Protocol: TCP, UDP, RTSP
• Search: Built-in index (accurate to second-level)
• Performance: Up to 800 Mbps incoming, 800 Mbps recording and 96Mbps for playback or live view
• Management Access: Web Browser, Speco Blue VMS
• Management Features: RAID Management, Record Management,
• System: Logs, and Alarm Processing
• Security: TPM
• Video Output: VGA
• USB Interfaces: Front Panel: USB 2.0 x 2, Rear Panel: USB 3.0 x 4
• Network Interfaces: 10/100/1000 Ethernet x 2 IPMI x 1
• Serial Interfaces: RS 232 x 1
• Power Supply: 550W Redundant Power Supply, 100-240V-7~3.4A/50~60Hz
• Working Temperature: 50°F to 95°F
• Standby Temperature: -40°F to +131°F (ambient)
• Relative Humidity Working: <90% RH (95°F)
• Noise: Working <50 Dba
• ESD: Each item conforms to Intel ambient temperature test standard 15KV

Dimensions: 17" W x 25" D x 1.75" H inches

NEW IN THE BOX
