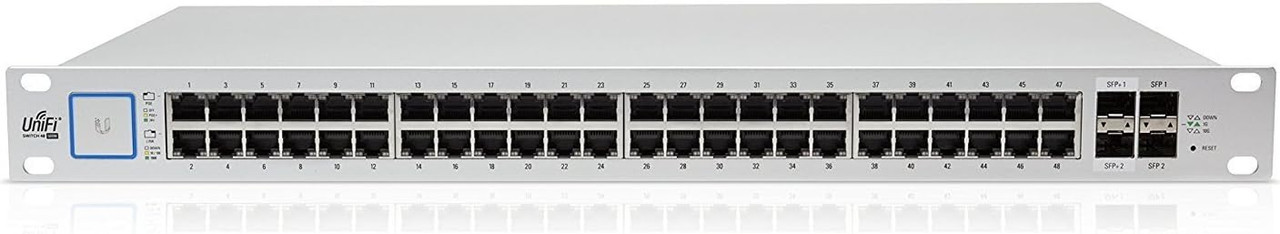

The versatile Ubiquiti UniFi Switch - 48 Ports Managed US-48-500W a fully managed 48 port PoE+ Gigabit switch that delivers robust performance, intelligent switching for growing networks. The US-48-500W delivers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.

Max. PoE Output: Up to PoE+

Total PoE Availability: 500W

Form Factor: Rack mount (1U)

Ports:

• 1 GbE RJ45: 48 (All PoE+) (1G/100M/10M)
• 1G SFP: 2 (1G)
• 10G SFP+: 2 (10G/1G)

PERFORMANCE:

Access Lists:

• IPv4: 128
• MAC: 128

LAYER 2 FEATURES:

• LACP Port Aggregation: Yes

• STP & RSTP: Yes

• Advanced IGMP Configuration (Querier, Fast Leave, Router Port): Yes

• IGMP Snooping: Yes

• 802.1X Control: Yes

• MAC-Based ACLs & Device Isolation: Yes

• DHCP Snooping & Guarding: Yes

• Egress Rate Limit: Yes

• Flow Control: Yes

• Storm Control: Yes

• Multicast & Broadcast Rate Limiting: Yes

• MAC Address Blocking: Yes

• IP-Based ACLs & Network Isolation: Yes

• MAC-Based Port Restriction: Yes

• Port Isolation: Yes

• Port Mirroring: Yes

• Jumbo Frames: Yes

• LLDP-MED: Yes

• Voice VLAN: Yes

• Loop Protection: Yes

• Virtual Network Override: Yes

Hardware:

• PoE Ports: PoE+ 48
• Power Method: Universal input, 100–240V AC, 50/60 H

• Power Input Method: AC Input

• Power Supply: AC/DC, internal, 500W

• Supported Voltage Range: 100-240V AC

• Management: Ethernet

• Mount Material: SGCC Steel

• Supported Rack Depth: 400~1200 mm (15.7-47.2")

• Ambient Operating Temperature: -5 to 40° C (23 to 104° F)

• Ambient Operating Humidity: 5 to 95% noncondensing
• NDAA Compliant

SOFTWARE

• Application Requirements UniFi Network: Version 6.3.51 and later

Dimensions: 485 x 374.6 x 43.7 mm (19.09 x 14.75 X 1.72'')

NEW IN THE BOX
