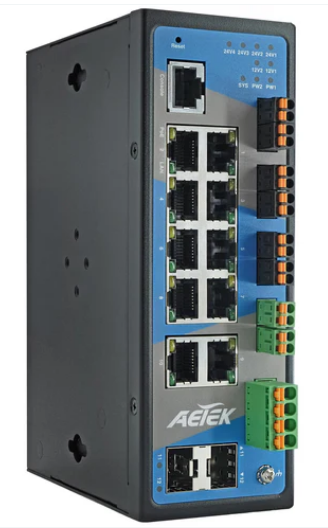

The sturdy AETEK 643591 D62-084-30-DC, Industrial L2 Managed PRO 8-Port Gigabit PoE+ Switch with 12V/24VDC Output, Digital Input/Output, 12-48VDC Input with Network Topology System (NTS), Digital Input/Output, 6KV PoE surge protection has 240 W PoE Power Budget, IP30-Rated Metal Housing, and DIN-Rail Mount.

Features:

• Network Topology System: Automatic discovery for ONVIF cameras, topology view, E-MAP floor view, Google map, PoE management, and cable diagnostic
• IEEE 802.3af/at compliant with up to 30W per port
• Dual 12-48VDC input
• Outputs: 8 PoE+ Ports, 2 x 12VDC, 4 x 24VDC

Specifications:

Standards and Certifications

• 802.3af / 802.3at
• CE, FCC, VCCI, C-Tick
• EN61000-4-5

General

• Number of Network Ports: 10
• Number of PoE Network Ports: 8
• Number of SFP Slots: 2
• Data transfer rate: 10M/100M/1G
• Mac Table: 8K
• Jumbo Frames: 9,216 Bytes
• Switching Capacity: 24 Gbps
• Forwarding Capacity: 17.856 Mpps
• Surge Protection per PoE Port: 6KV
• MTBF (Hours): 69,734
• Operating Altitude: 2,000 m (6,562 ft)

Connectors/Buttons

• Console Port: 1 x RJ45
• Reset Button ( 2~7 sec.: Reset/Restart, 7~12 sec.: Restore factory default)
• Digital I/O: 1

Power

• Redundant 12-48VDC input
• 2 x 12VDC outputs
• 4 x 24VDC outputs
• Max. Power Consumption (without PoE): 10 Watts
• PoE Output Power Budget: 12VDC: 80W, 24VDC: 160W, 48VDC: 240W

Mechanical & Environmental:

• Operating Temperature: -40°C~ 75°C (-40°F~ 167°F)
• Storage Temperature: -40°C~ 85°C (-40°F~ 185°F)
• Operating Humidity: 5% ~ 95% non-condensing

Dimensions (L x W x H): 1.78 x 3.93 x 5.12 inches

A minimum order amount of $50 is required in order to Maintain Wholesale Price

NEW IN THE BOX
