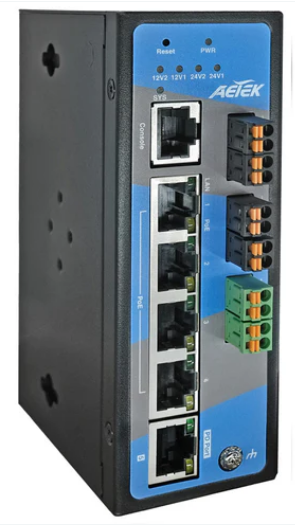

The reliable AETEK 643645 D62-040-30, Industrial L2 Managed PRO 4-Port Gigabit PoE+ Passthrough Switch with 12V/24VDC Output, 90W PoE++ Input with Network Topology System (NTS), Digital Input/Output, 6KV PoE surge protection, IP30-Rated Metal Housing, DIN-Rail Mount.

Features:

• Network Topology System: Automatic discovery for ONVIF cameras, topology view, E-MAP floor view, Google map, PoE management, cable diagnostic
• IEEE 802.3af/at compliant with up to 30W per port
• Outputs: 4 PoE+ Ports, 2 x 12VDC, 2 x 24VDC

Specifications:

Standards and Certifications

• 802.3af / 802.3at
• CE, FCC, VCCI, C-Tick
• EN61000-4-5

Connectors/Buttons

• Console Port: 1 x RJ45
• Reset Button ( 2~7 sec.: Reset/Restart, 7~12 sec.: Restore factory default)
• Digital I/O: 1

Power

• PD RJ45 Port, PoE++ 90W
• 2 x 12VDC outputs
• 2 x 24VDC outputs
• Max. Power Consumption (without PoE): 10 Watts
• PoE Output Power Budget: 72W

Mechanical & Environmental:

• Operating Temperature: -40°C~ 75°C (-40°F~ 167°F)
• Storage Temperature: -40°C~ 85°C (-40°F~ 185°F)
• Operating Humidity: 5% ~ 95% non-condensing

Dimensions (L x W x H): 1.78 x 3.93 x 5.12 inches

A minimum order amount of $50 is required in order to Maintain Wholesale Price

NEW IN THE BOX
