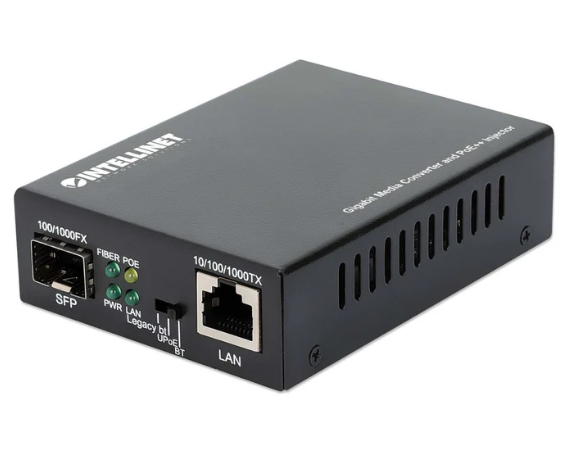

The efficient Intellinet 509688 Gigabit Media Converter and PoE++ Injector, IMC-SFPG-90W, with 10/100/1000Base-TX to SFP Slot, PoE Injector Function, 90 W, IEEE 802.3bt (4PPoE) Compliant, Supports UPoE and Legacy 4PPoE, AND Metal Housing.

Features:

• One 10/100/1000 RJ45 port supporting a maximum distance of 100 m (328 ft.)
• One SFP port for 1000Base-X optical transceiver modules and distances up to 120 km / 75 mi. (depending on the module used)
• Power over Ethernet injector function with output up to 90 watts

Specifications:

Standards

• IEEE 802.3af (Power over Ethernet)
• IEEE 802.3at (High-Power PoE+ Power over Ethernet)
• IEEE 802.3bt (PoE++/4PPoE Power over Ethernet)
• IEEE 802.3 (10Base-T Ethernet)
• IEEE 802.3u (100Base-TX Fast Ethernet)
• IEEE 802.3ab (1000BASE-T Gigabit Ethernet)
• IEEE 802.3z (1000Base-X Gigabit over Fiber Optic)



General

• Media support:
  - 10Base-T Cat3/4/5/5e/6/6a UTP/STP RJ45
  - 100Base-TX Cat5/5e/6/6a UTP/STP RJ45
  - 1000Base-T Cat5e/6/6a UTP/STP RJ45
  - SFP module slot for Mini GBIC module (not included)
• MAC address table: 2k
• Buffer memory: 2 Mbits
• Switch architecture: store and forward
• Certifications: FCC, CE, RoHS, REACH, UKCA, TAA
• MTBF: 574,619 hours



DIP switch functions to select the PoE standard of the connected PD:

• 802.3bt (for fully compliant IEEE 802.3bt/at/af PDs)
• UPoE (for PDs that support the maximum power from PSE over four pairs, regardless of the PD class, including Cisco Universal Power over Ethernet)
• Legacy (for PDs not in full compliance with 802.3bt/at/af)



PoE Pinout

• Pin 1: DC (-)
• Pin 2: DC (-)
• Pin 3: DC (+)
• Pin 4: DC (+)
• Pin 5: DC (+)
• Pin 6: DC (+)
• Pin 7: DC (-)
• Pin 8: DC (-)



Power

• Included external power adapter:
  - Input: 100.0 - 240.0 VAC, 50 - 60 Hz
  - Output: DC, 55.0 V, 2.3 A
  - PoE power budget: 90.0 watts (max.)
  - Power consumption: 126.5 watts (max.)



LEDs

• FIBER
• POE
• PWR
• LAN



Physical

• Net weight: 200 g (0.44 lbs.)
• Gross weight: 760 g (1.68 lbs.)
• Operating temperature: 0 - 50°C (32 - 122°F)
• Storage temperature: -40 - 80°C (-40 - 176°F)
• Operating humidity: 10 - 90% RH, non-condensing
• Storage humidity: 5 - 90% RH, non-condensing



Package Contents

• Gigabit Media Converter and PoE++ Injector
• Power adapter
• Instructions

Dimensions (L x W x H): 3.7 x 2.76 x 1.02 inches
