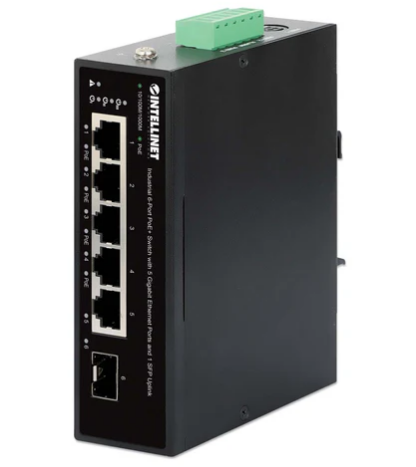

The high-performance Intellinet 509558 Industrial 6-Port PoE+ Switch with 5 Gigabit Ethernet Ports and 1 SFP Uplink, IIS-5G01POE-120W is an IEEE 802.3at/af Compliant, Four PSE PoE+ Ports (up to 30 W per port), PoE Power Budget up to 120 W, IP50-Rated Metal Housing, Redundant Power Supply, DIN-Rail Mount and Wall-Mount Option

Features:

• Offers five Gigabit RJ45 Ethernet ports, with four supporting PoE+ to provide both power and data to connected devices
• One small form-factor pluggable (SFP) GBIC module slot for 1G uplink capability
• PoE power budget of 120 watts (depending on the power supply used)

Standards

• IEEE 802.3 (10Base-T Ethernet)
• IEEE 802.3u (100Base-TX Fast Ethernet)
• IEEE 802.3ab (Twisted Pair Gigabit Ethernet)
• IEEE 802.3af (Power over Ethernet 802.3at Type 1)
• IEEE 802.3at (Power over Ethernet 802.3at Type 2)
• IEEE 802.3az (Energy Efficient Ethernet EEE)
• IEEE 802.3x (Flow control for full-duplex mode)
• IEEE 802.3z (1000BASE-X Gigabit Ethernet)



General

• Media support:
  - 10Base-T Cat5e/6/6a UTP/STP RJ45
  - 100Base-TX Cat5e/6/6a UTP/STP RJ45
  - 1000Base-T Cat5e/6/6a UTP/STP RJ45
• Packet filter/forwarding rate:
  - 1,488,000 pps (1000 Mbps)
  - 148,800 pps (100 Mbps)
  - 14,880 pps (10 Mbps)
• MAC address table: 2k
• Buffer memory: 2 MBits
• Backplane speed/switching capacity: 24 Gbps
• Switch architecture: store and forward
• Certifications: FCC, CE, RoHS, REACH, UKCA, TAA
• MTBF: 1M hours



Electrical

• Via DC industrial power supply (not included), 6-pin terminal block
  - Input: 48.0 - 57.0 V, up to 5.21 A
  - PoE power budget: 120.0 W (max.)
• DC output: up to 30.0 W per RJ45 PoE port



LEDs

• Power
• Alarm
• LAN
• SFP
• PoE



Pinout RJ45 output ports:
- Pin 1: DC (+)
- Pin 2: DC (+)
- Pin 3: DC (-)
- Pin 6: DC (-)

Terminal block Pinout
- PWR2: Pin 1 (V+) and Pin 2 (V-)
- PWR3: Pin 5 (V+) and Pin 6 (V-)
- ALARM: Pin 3 (+) and Pin 4 (-)

Package Contents

• 6-Port PoE+ Switch with 5 Gigabit Ethernet Ports and 1 SFP Uplink
• Instructions

Dimensions (L x W x H): 5 x 3.98 x 1.53 inches
