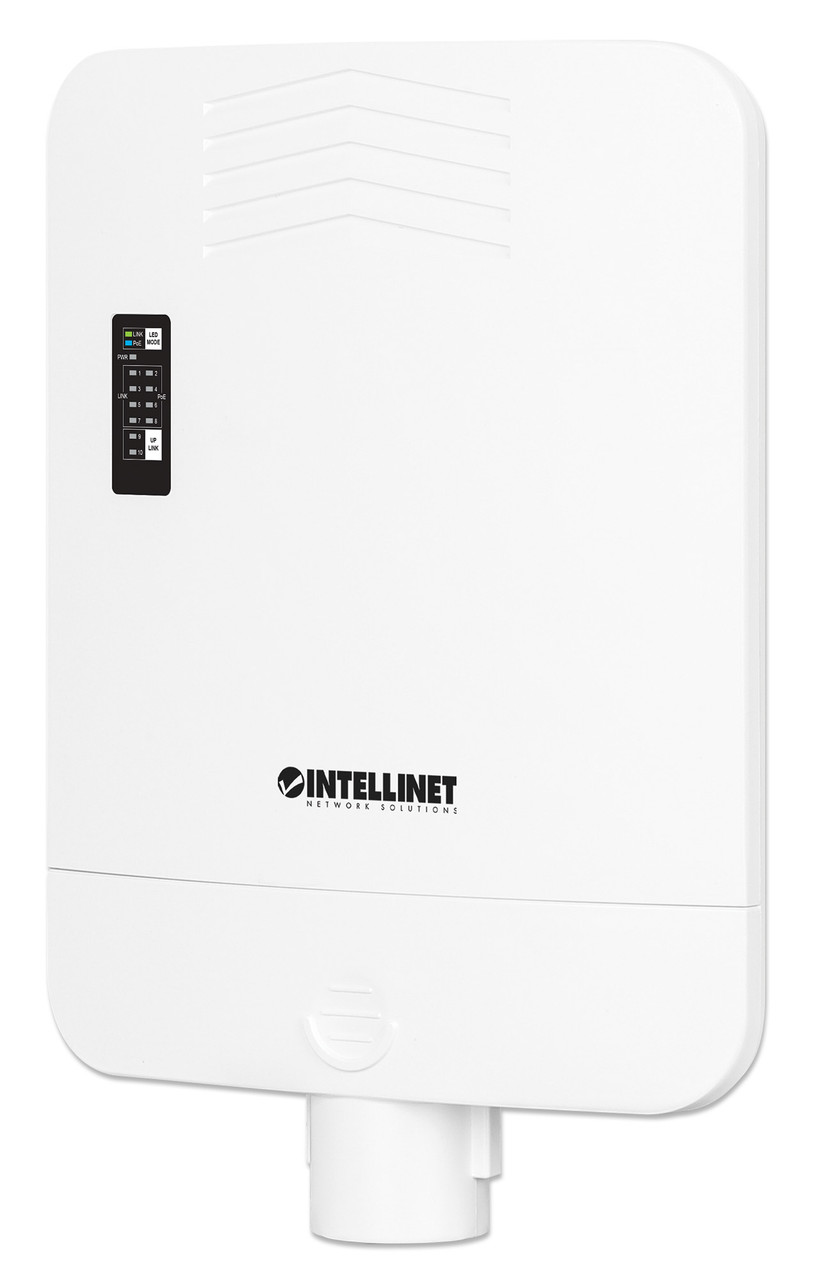

The modern Intellinet 562324 Outdoor 10-Port L2+ Fully Managed PoE+ Switch with 8 Gigabit Ethernet Ports and 2 SFP Uplinks, IPS-08GM02-OD85W is a 85 W PoE Power Budget, IEEE 802.3at/af (PoE+/PoE) Compliant, Layer 2+/Layer 3 Lite, Two 1G SFP Open Slots, Self-Healing Network, Rainproof IP65, NEMA 4, for Wall- and Pole-Mounting.

Features:

Specifications:

Standards

• IEEE 802.1p (Traffic Prioritization)
• IEEE 802.1q (VLAN Tagging)
• IEEE 802.3ad (Link Aggregation)
• IEEE 802.3 (10Base-T Ethernet)
• IEEE 802.3ab (Twisted Pair Gigabit Ethernet)
• IEEE 802.3ad (Link Aggregation Control Protocol LACP)
• IEEE 802.3af (Power over Ethernet 802.3at Type 1)
• IEEE 802.3at (Power over Ethernet 802.3at Type 2)
• IEEE 802.3u (100Base-TX Fast Ethernet)
• IEEE 802.3x (flow control, for full-duplex mode)



General

• Ports
  - 8 x 10/100/1000 Mbps RJ45 PoE-enabled ports
  - Two 1G SFP slots
• Media support
  - 10Base-T Cat5e/6/6a/8.x UTP/STP RJ45
  - 100Base-TX Cat5e/6/6a/8.x UTP/STP RJ45
  - 1000Base-T Cat5e/6/6a/8.x UTP/STP RJ45
• MAC address table: 8k
• Buffer memory: 4.1 Mbits
• Forwarding rate: 14.9 Mpps
• MTBF: >50k hours
• Backplane speed/switch fabric: 20 Gbps
• Switch architecture: store and forward
• Smart configuration options:
  - 802.1x authentication
  - ACL Access Control List
  - Broadcast Storm configuration with broadcast rate, multicast rate, and flooded unicast rate
  - Cable diagnostic
  - DHCP: Client/Option82/Snooping with enhanced security - supports dynamic ARP binding to prevent ARP spoofing, dynamic IP/MAC/port binding, and stationary port configuration to block unauthorized DHCP servers.
  - IGMP Snooping via command line
  - Port link speed: 10 Mbps, 100 Mbps, 1000 Mbps or auto-negotiation
  - Flow control on/off per port
  - LAN settings (IP address, DHCP, Gateway, etc.)
  - MAC address management, learning & aging, MAC filter
  - Ping utility
  - Port Mirroring, one to one or many to one
  - Port Aggregation/LACP: 8 groups
  - Quality of Service (QoS)
  - Link Layer Discovery Protocol (LLDP) - Station and Media Access Control Connectivity Discovery
  - Radius server via command line
  - Rate limiting (ingress rate and egress rate)
  - RMON groups (statistic, history, alarm and event)
  - SNMPv1/v2c/v3 (Simple Network Management Protocol)
  - Spanning tree (STP, RSTP, MSTP)
  - TACAS+ via command line
  - Tracert utility
  - VLAN
• PD monitor function, watch guard
• PoE Scheduling
• Switch architecture: store and forward
• Flow control on/off per port
• Access management filtering: SNMP, HTTP, HTTPS, SSH, TELNET Quality of Service (QoS): CoS or DSCP
• Link Layer Discovery Protocol (LLDP)
• Integrated ICMP Ping client sends ping requests to other network nodes
• SNMPv1/v2c/v3 (Simple Network Management Protocol)
• RMON (1, 2, 3 and 9 groups)
• LAN settings (IP address, Gateway, etc.)
• SSH
• Certifications: FCC, CE, RoHS, REACH, UKCA, NDAA



LEDs

• PoE
• Power
• Link/Activity
• System



Pinout RJ45 output ports
- Pin 1: DC (-)
- Pin 2: DC (-)
- Pin 3: DC (+)
- Pin 6: DC (+)

Power

• Input: 100.0 - 240.0 VAC to terminal block, 50 - 60 Hz, internal power supply
• Power output per port: 30.0 W
• PoE power budget: 85.0 watts (max.)
• Power consumption: 95.0 W (max.)



Physical

• IP65-rated plastic housing (weatherproof/rainproof)
• Net weight: 950 g (2.09 lbs.)
• Gross weight: 1.42 kg (3.13 lbs.)



Environmental

• Operating temperature: -20 to 60°C (-4 to 140°F)
• Storage temperature: -20 to 70°C (-4 to 158°F)
• Operating humidity: up to 90% RH, non-condensing
• Storage humidity: up to 95% RH, non-condensing



Package Contents

• Outdoor 10-Port L2+ Smart Managed PoE+ Switch with 8 Gigabit Ethernet Ports and 2 SFP Uplinks
• Power cable, 1.5 m (5 ft.)
• Instructions

Dimensions (L x W x H): 11.61 x 8.11 x 1.97 inches
