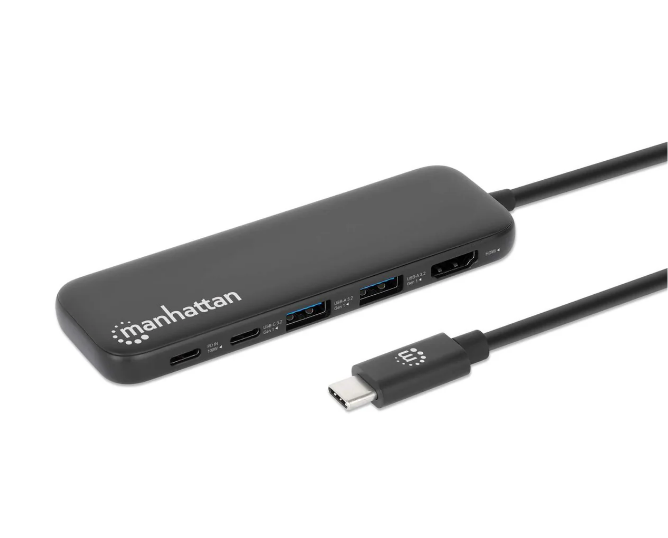

The high-performance Manhattan 130721 USB-C Docking Station with 100 W PD / 4K HDMI 5-in-1 Multiport USB Hub is a USB 3.2 Gen 1 Type-C Male to One HDMI Port (4K@30Hz), Two USB-A Ports (up to 5 Gbps), USB-C Power Delivery Port (100 W) and USB-C Data Port (5 Gbps), in color Black.

Features:

• Connects your laptop to your HDMI monitor and peripherals with an optional charging input
• One HDMI port with resolutions up to Ultra-High-Definition (UHD) 4K@30Hz (3840×2160)
• Charges your laptop with USB Power Delivery (PD) up to 85 W; requires an external PD charger - available from Manhattan

SPECIFICATIONS:

Standards and Certifications

• USB 3.2 Gen 1
• HDMI 1.4
• HDCP 1.4
• CE
• FCC
• RoHS
• REACH
• UKCA



General

• Max. video resolution: 4K (3840 x 2160 pixels) at 30 Hz
• USB-A ports data transfer speed: 5 Gbps; charging: 2.5 W (5 V / 0.5 A) max.
• USB-C port data transfer speed: 5 Gbps
• Bus-powered operation (except charging functions)
• USB-C PD charging port: 100.0 W input / 85.0 W output max.
  - Voltage/current settings (maximum):
  - 5.0 V / 3.0 A
  - 9.0 V / 3.0 A
  - 15.0 V / 3.0 A
  - 20.0 V / 5.0 A

Connections

• One USB-C 24-pin, male
• One HDMI 19-pin, female
• Two USB-A 9-pin, female
• One USB-C 24-pin, Power Delivery, female
• One USB-C 24-pin, data only, female



Physical

• Net weight: 0.13 lbs. (60 g)
• Gross weight: 0.2 lbs. (90 g)
• Cable length: 20 in. (50 cm)
• Cable diameter: 34 AWG
• Plastic housing

Dimensions (L x W x H): 4.8 x 1.61 x 0.39 in. (122 x 41 x 10 mm)
