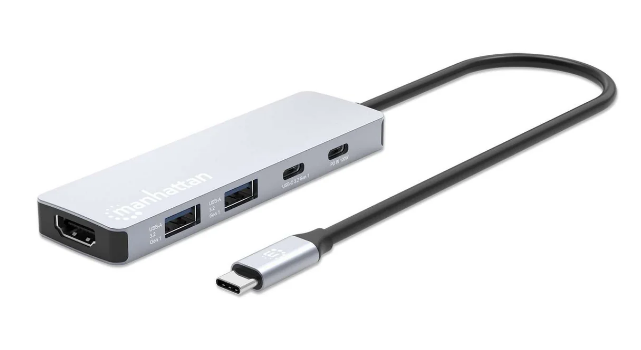

The high-performance Manhattan 190411 USB-C PD 5-in-1 HDMI 4K Docking Station / Multiport Hub is a USB 3.2 Gen 1 Type-C Male to HDMI (4K@60Hz), Two USB-A (5 Gbps), USB-C Power Delivery (100 W) and USB-C Data (5 Gbps) Ports, Aluminum, in color Space Gray.

Features:

• Connects your USB-C device to an HDMI display and USB peripherals while charging it with Power Delivery
• One HDMI port with resolutions up to Ultra-High-Definition (UHD) 4K@60Hz (3840×2160)
• Two USB 3.2 Gen 1 (formerly USB 3.0) Type-A ports with SuperSpeed transfer rates up to 5 Gbps and charging up to 4.5 W (5 V / 0.9 A)

Specifications:

Standards and Certifications

• DP 1.4 Alt Mode over USB-C
• USB 3.2 Gen 1
• HDMI 2.0
• HDCP 2.3
• FCC

General

• Available video resolutions: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 4K@30Hz, 4K@60Hz
• USB-A port data transfer speed: 5 Gbps
• USB-C port data transfer speed: 5 Gbps
• Bus powered operation (except charging functions)
• USB-A charging: 4.5 W (5.0 V at 0.9 A) max.
• USB-C PD charging port: 100.0 W (15.0 V at 4.25 A) max.
  - Voltage/current settings (maximum):
  - 5.0 V / 1.5 A
  - 9.0 V / 1.33 A
  - 12.0 V / 1.75 A
  - 15.0 V / 2.6 A
  - 15.0 V / 4.25 A



Connections

• One USB-C 24-pin, male
• One USB-C 16-pin, Power Delivery, female
• One USB-C 24-pin, data only, female
• Two USB-A 9-pin, female
• One HDMI 19-pin, female



Dimensions (L x W x H): 4.33 x 1.26 x 0.42 inches

"A minimum order amount of $50 is required in order to Maintain Wholesale Price"

NEW IN THE BOX
