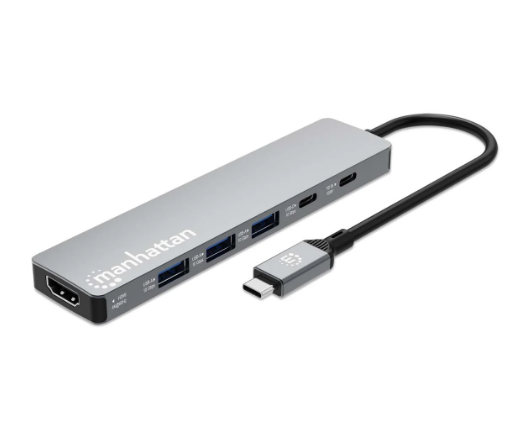

The versatile Manhattan 190480 USB-C PD 6-in-1 HDMI 4K Docking Station / Multiport Hub, MDS-6P-SM4K60 is a USB 3.2 Gen 2 Type-C Male to HDMI (4K@60Hz), Three USB-A (10 Gbps), USB-C Power Delivery (100 W) and USB-C Data (10 Gbps), Aluminum, in color Space Gray.

Features:

• Connects your USB-C device to an HDMI display and USB peripherals while charging it with Power Delivery
• One HDMI port with resolutions up to Ultra-High-Definition (UHD) 4K@60Hz (3840×2160)
• Three USB 3.2 Gen 2 Type-A ports with SuperSpeed+ transfer rates up to 10 Gbps and charging up to 7.5 W (5 V / 1.5 A)
• USB-A ports to connect mice, keyboards, flash drives and more or to charge and sync mobile devices
• One USB 3.2 Gen 2 Type-C data-only port with transfer rates up to 10 Gbps, great for synchronizing mobile devices
• Charges your laptop with USB Power Delivery (PD) up to 100 W; requires an external PD charger - available from Manhattan
• Compatible with all USB-C DP-Alt-Mode-supported laptops, tablets, and notebooks including Apple® MacBook®, Chromebook™, and more
• Compliant with DisplayPort 1.4 Alternate Mode (DP Alt Mode)
• Lets your smartphone work like a desktop PC while also charging it (desktop setup requires devices that support DP Alt Mode and video output over USB-C)
• Plug-and-play installation; Windows®, macOS®, Android™, iOS®, Chrome OS®, iPadOS®, and Linux® compatible
• Supports PD 3.0 Fast Role Swap (FRS) - the connection between the docking station and laptop is not interrupted when the charger is unplugged
• Sturdy, sleek aluminum housing, great for both desktop and travel
• Compatible with USB4® and Thunderbolt™ 3 / 4 interfaces
• USB ports backward compatible with USB 3.0, USB 2.0, and USB 1.1
• Fully HDCP 2.3 compliant, backward compatible
• Three-year warranty

Specifications:

Standards and Certifications

• DP 1.4 Alt Mode over USB-C
• USB 3.2 Gen 2
• HDMI 2.0
• HDCP 2.3
• PD 3.0
• CE
• FCC
• RoHS
• REACH
• UKCA



General

• Available video resolutions: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 4K@30Hz, 4K@60Hz
• USB-A port data transfer speed: 10 Gbps
• USB-C port data transfer speed: 10 Gbps
• Bus powered operation (except charging functions)
• USB-A charging: 7.5 W (5.0 V at 1.5 A) max.
• USB-C PD charging port: 100.0 W (20.0 V at 5.0 A) max.
  - Voltage/current settings (maximum):
  - 5.0 V / 3.0 A / 15.0 W
  - 9.0 V / 3.0 A / 27.0 W
  - 12.0 V / 3.0 A / 36.0
  - 15.0 V / 3.0 A / 45.0 W
  - 20.0 V / 5.0 A / 100.0 W



Connections

• One USB-C 24-pin, male
• One USB-C 16-pin, Power Delivery, female
• One USB-C 24-pin, data only, female
• Three USB-A 9-pin, female
• One HDMI 19-pin, female



Physical

• Cable length: 15 cm (6 in.)
• Cable OD: 4.5 mm (0.18 in.)
• Net weight: 61 g (0.12 lbs.)
• Gross weight: 95 g (0.18 lbs.)
• Aluminum housing



Operating Environment

• Operation and storage temperature: 0 to 50°C (32 to 122°F)
• Humidity (non-condensing): 0 to 85% RH



System Requirements

• Windows 7/8.1/10/11, Chrome OS, macOS, iPadOS, iOS, Android or Linux



Package Contents

• USB-C PD 6-in-1 Docking Station / Multiport Adapter for One HDMI Monitor
• Instructions

Dimensions (L x W x H): 5.31 x 1.26 x 0.43 inches

A minimum order amount of $50 is required in order to Maintain Wholesale Price

NEW IN THE BOX
