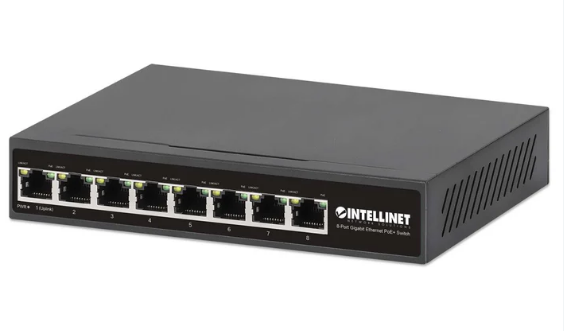

The high-performance Intellinet 562379 8-Port Gigabit Ethernet PoE+ Switch is IEEE 802.3at/af (PoE+/PoE) Compliant, with a 60 W PoE Power Budget, Unmanaged with Self-Healing Network, PoE Extend Mode, and VLAN, in Desktop Format.

Features:

• Unmanaged PoE switch with Self-Healing Network feature and PoE extend mode
• Provides up to eight PoE network devices with power and data
• PoE power budget of 60 watts

Specifications:

Standards

• IEEE 802.3 (10Base-T Ethernet)
• IEEE 802.3ab (Twisted Pair Gigabit Ethernet)
• IEEE 802.3af (Power over Ethernet Type 1)
• IEEE 802.3at (Power over Ethernet Type 2)
• IEEE 802.3u (100Base-TX Fast Ethernet)
• IEEE 802.3x (flow control for full duplex mode)



General

• Media support:
  - 10Base-T Cat5e/6/6a/8.x UTP/STP RJ45
  - 100Base-TX Cat5e/6/6a/8.x UTP/STP RJ45
  - 1000Base-T Cat5e/6/6a/8.x UTP/STP RJ45
• MAC address table: 2k
• Buffer memory: 1 Mbit
• Forwarding rate: 11.9 Mpps
• Backplane speed / switch fabric: 16 Gbps
• Switch architecture: store and forward
• Certifications: FCC, CE, RoHS, UKCA, NDAA



Modes (selectable via DIP switch on back panel)

• Standard
• VLAN (Port Isolation)
• Extend



LEDs

• Power
• Link/activity
• PoE



Pinout RJ45 output ports
- Pin 1: DC (+)
- Pin 2: DC (+)
- Pin 3: DC (-)
- Pin 6: DC (-)

Power

• Input: 100.0 - 240.0 VAC, 50 - 60 Hz, internal power supply
• PoE power budget: 60.0 W (max.)
• Power consumption: 65.0 W (max.)

Physical

• Metal housing
• Dimensions (L x W x H): 94 x 168 x 32 mm (3.7 x 6.61 x 1.26 in.)
• Net weight: 610 g (1.34 lbs.)
• Gross weight: 810 g (1.79 lbs.)
• Operating temperature: 0 to 45°C (32 to 113°F)
• Storage temperature: -40 - 70°C (-40 to 158 °F)
• Operating humidity: 10 to 90% RH, non-condensing
• Storage humidity: 5 to 90% RH, non-condensing



Package Contents:

• 8-Port Gigabit Ethernet PoE+ Switch with Self-Healing Network and PoE Extend Mode
• Power cable
• Instructions
• Four rubber feet

Dimensions (L x W x H): 3.7 x 6.61 x 1.26 inches
