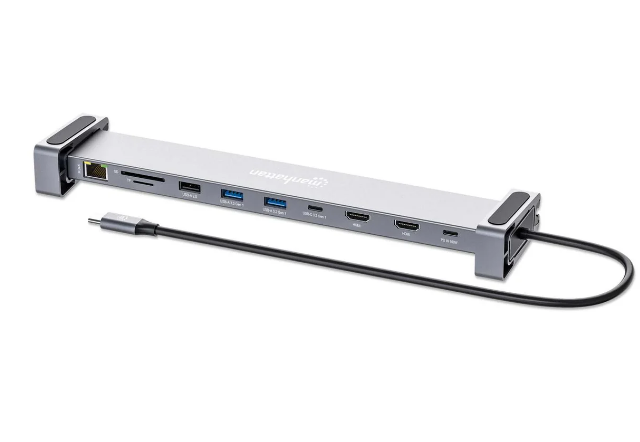

The efficient Manhattan 190398 USB-C PD 10-in-1 Dual-HDMI Monitor Docking Station / Multiport Hub is a USB 3.2 Gen 1 Type-C Male to Two HDMI (up to 4K@60Hz), Three USB-A (up to 5 Gbps), USB-C Power Delivery (100 W), USB-C Data (5 Gbps), SD/microSD Card Reader, and Gigabit RJ45 Ports, Aluminum, in color Silver.

Features:

• Connects your laptop to your displays, network and peripherals while charging your devices
• Two HDMI ports with up to 4K@60Hz UHD (3840 × 2160) resolution on single- and dual-video output
• Uses Multi-Stream Transport (MST) for display modes on Windows® (Mirror or Fully Extended) and Mac® (Mirror or Extended Mirror only)

Specifications:

General

• Video:
  - Available resolutions: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 4K@30Hz, 4K@60Hz
• USB-A port data transfer speed on USB 3.2 Gen 1 ports: 5 Gbps
• USB-A port data transfer speed on USB 2.0 port: 480 Mbps
• Bus-powered operation (except charging functions)
• USB-A charging on USB 3.2 Gen 1 ports: 4.5 W (5.0 V at 0.9 A) max.
• USB-A charging on USB 2.0 port: 2.5 W (5.0 V at 0.5 A) max.
• USB-C PD charging port: 100.0 W (20.0 V at 5.0 A) max.
  - Voltage/current settings (maximum):
  - 5.0 V / 3.0 A
  - 9.0 V / 3.0 A
  - 12.0 V / 3.0 A
  - 15.0 V / 3.0 A
  - 19.0 V / 5.0 A
  - 20.0 V / 5.0 A



Connections

• One USB-C 24-pin, male
• Two HDMI 19-pin, female
• One 10/100/1000 Mbps RJ45, female
• Two USB-A 9-pin, female
• One USB-A 4-pin, female
• One SD memory slot
• One microSD memory slot
• One USB-C 24-pin, data only, female
• One USB-C 16-pin, Power Delivery, female
  Note: The two card reader slots cannot be used simultaneously



Dimensions (L x W x H): 10.6 x 2.36 x 1.18 inches

"A minimum order amount of $50 is required in order to Maintain Wholesale Price"

NEW IN THE BOX
