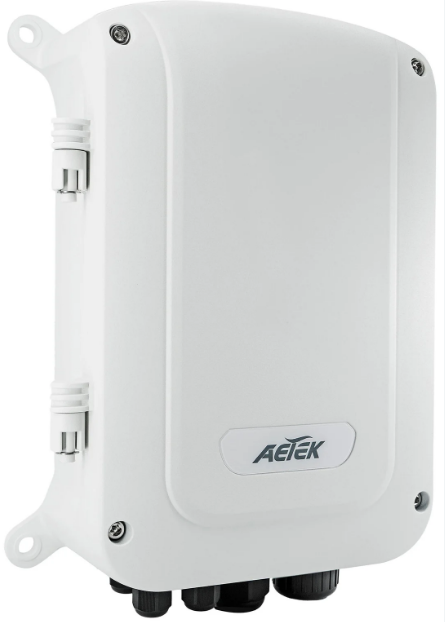

The high-performance AETEK 642167 H60-044-30-150-V2, Outdoor IP67/IK10 L2 PRO 4-Port Gigabit PoE+ Switch with 8 x IEEE 802.3at PoE+ ports, 2 x SFP uplink ports, 6KV PoE surge protection, 250 W PoE Power Budget, IP67-Rated Aluminum Housing.

Features:

• Network Topology System: Automatic discovery for ONVIF cameras, topology view, E-MAP floor view, Google map, PoE management, cable diagnostics
• IP67/IK10-rated heavy-duty Aluminum enclosure
• 4 x IEEE 802.3at compliant PoE+ ports with up to 30W each
• Two SFP 1.25G slots allow for daisy-chaining for long-range IP surveillance

Specifications:

Standards and Certifications

Certifications

• EMC: CE, FCC, VCCI, C-Tick Class A
• Safety: EN62368-1
• Surge: EN61000-4-5

Networking

• Total Gigabit Ethernet Ports: 8
• 4 × 30W at PoE Gigabit Ethernet 802.3af/at Ports
• 2 × Gigabit Ethernet SFP Ports (100M/1G)
• 2 × Gigabit Ethernet RJ45 Ports
• Forwarding Capacity: 11.904 Mpps
• MAC Table: 8K
• Jumbo Frames: 9,216 Bytes
• Switching Capacity: 16 Gbps

Power

• Input Voltage: 100–240VAC and 48–56VDC Backup Input Power
• Output Power per PoE Port:
  • PoE IEEE 802.3af (Max. 15.4W)
  • PoE+ IEEE 802.3at (Max. 30W)
• Output PoE Power Pin Assignment: 12(+), 36(-)
• System Power Consumption (without PoE): 10W
• PoE Output Power Budget: 120W
• Surge Protection per PoE Port: 6KV
• Surge Protection for AC Power: 40KV

Mechanical

• DI/DO: 1/1
• Console: RJ45
• Reset Button Functions:
  • 2–7 sec: Reset
  • 7–12 sec: Restore to default

Environmental

• IP Rating: IP67
• IK Rating: IK10
• Operating Temperature: -40°C to 65°C (-40°F to 149°F)
• Storage Temperature: -40°C to 85°C (-40°F to 185°F)
• Operating Humidity: 5% to 95% non-condensing

Dimensions (W × D × H): 9.68 × 12.42 × 4.65 inches

A minimum order amount of $50 is required in order to Maintain Wholesale Price

NEW IN THE BOX
