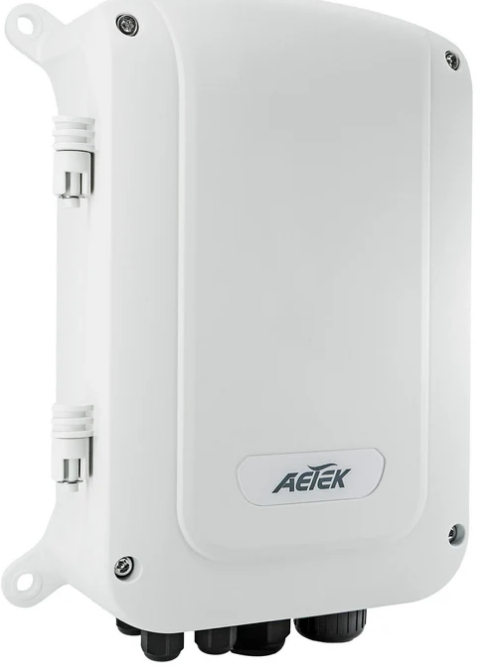

The rugged AETEK 641283 H60-044-90-250, Outdoor IP67/IK10 L2 PRO 4-Port Gigabit bt/PoH PoE Switch with 8 x IEEE 802.3at PoE+ ports, 2 x SFP uplink ports, 6KV PoE surge protection, 250 W PoE Power Budget, and IP67-Rated Aluminum Housing.

Features:

• Network Topology System: Automatic discovery for ONVIF cameras, topology view, E-MAP floor view, Google map, PoE management, cable diagnostics
• IP67/IK10 rated heavy-duty Aluminum enclosure
• 4 x IEEE 802.3bt compliant PoE++ ports with up to 90W each
• Two RJ45 Gigabit and SFP 1.25G slots allow for daisy-chaining for long-range IP surveillance

Specifications:

Standards and Certifications

Networking

• Total Gigabit Ethernet Ports: 8
• 4 × 90W bt/PoH Gigabit PoE Ports
• 2 × Gigabit SFP Ports (100M/1G)
• 2 × RJ45 Gigabit Ethernet Ports
• Forwarding Capacity: 11.904 Mpps
• MAC Table Size: 8K entries
• Jumbo Frame Support: 9,216 Bytes
• Switching Capacity: 16 Gbps

Power

• Input Voltage: 100–240VAC with 48–56VDC backup
• Supports IEEE 802.3af (15.4W), 802.3at (30W), 802.3bt/PoH (90W)
• PoE Pin Assignment: 12(-), 36(+), 45(+), 78(-)
• System Power Consumption (no PoE): 10W
• Total PoE Power Budget: 240W
• Surge Protection per PoE Port: 6KV
• Surge Protection for AC Input: 40KV

Mechanical

• DI/DO: 1/1
• Console Port: RJ45
• Reset Button: 2–7 sec = Reset, 7–12 sec = Factory Restore

Environmental

• IP Rating: IP67
• IK Rating: IK10
• Operating Temperature: -40°C to 65°C (-40°F to 149°F)
• Storage Temperature: -40°C to 85°C (-40°F to 185°F)
• Operating Humidity: 5% to 95% non-condensing

Certifications

• EMC: CE, FCC, VCCI, C-Tick Class A
• Safety: EN62368-1
• Surge: EN61000-4-5

Dimensions: 9.68 × 12.42 × 4.65 inches

A minimum order amount of $50 is required in order to Maintain Wholesale Price

NEW IN THE BOX
