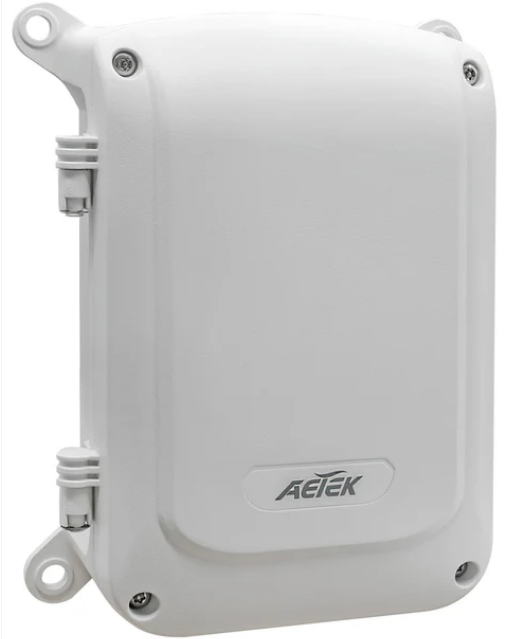

The reliable AETEK 641627 H40-022-91-DC, Outdoor IP67/IK10 Gigabit 90W PoE Switch w/ 12~56VDC Input is a 6KV PoE surge protection, PoE Power Budget up to 180 W, IP67-Rated Aluminum Housing.

Features:

• IP67/IK10 rated heavy-duty Aluminum enclosure
• Two IEEE 802.3bt-compliant PoE ports with up to 90W each
• Two SFP 1.25G slots allow for daisy-chaining for long-range IP surveillance
• Outputs: 2 PoE++ Ports

Specifications:

Standards and Certifications

• 802.3af / 802.3at / 802.3bt
• CE, FCC, VCCI, C-Tick Class A
• EN61000-4-5

General

• Number of Network Ports: 4
• Number of PoE Network Ports: 2
• Number of SFP Ports: 2 x 1.25G
• 2 x M25
• Data transfer rate: 10M/100M/1G
• Mac table: 8K
• Jumbo frames: 9,216 Bytes
• Switching capacity: 8 Gbps
• Forwarding capacity: 11.904Mpps
• Surge protection per PoE Port: 6KV
• Weather rating: IP67
• Vandal proof: IK10
• MTBF (Hours): 293,934
• Operating Altitude: 2,000 m (6,562 ft)

Power

• Input Voltage: 12VDC ~ 56VDC
• Output Voltage Range / port 1~port 2: 54 VDC, PoE IEEE 802.3af (Max. 15.4W) output, PoE+ IEEE802.3at (Max. 30W) output, PoE++ IEEE 802.3bt (Max.60W/90W) output
• PSE Power Pin Assignment: 12(-),36(+),45(+),78(-)
• PoE Output Power Budget: 12VDC: 90W, 24-56VDC: 180W

Mechanical & Environmental:

• Operating Temperature: -40°C~ 65°C (-40°F~ 149°F)
• Storage Temperature: -40°C~ 85°C (-40°F~ 185°F)
• Operating Humidity: 5% ~ 95% non-condensing

Dimensions (L x W x H): 10 x 7.86 x 3.7 inches

A minimum order amount of $50 is required in order to Maintain Wholesale Price

NEW IN THE BOX
