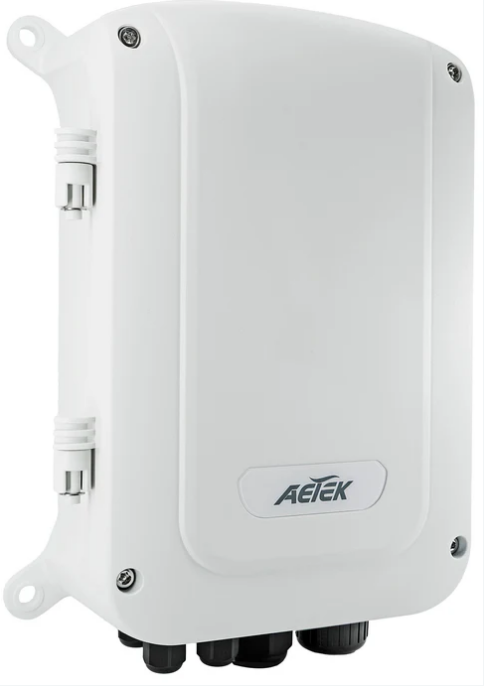

The high-performance AETEK 640385 H40-044-30-150-V3, Outdoor IP67/IK10 4-Port 30W PoE + 2-Port SFP + 2-Port RJ45 Gigabit PoE Switch is 4 x IEEE 802.3at PoE+ ports, 2 x RJ45 ports, 2 x SFP uplink ports, 6KV PoE surge protection, 150W PoE Power Budget, IP67-Rated Aluminum Housing.

Features:

• IP67/IK10-rated heavy-duty Aluminum enclosure
• Four IEEE 802.3at-compliant PoE+ ports with up to 30W each
• Two RJ45 Gigabit ports
• Two SFP 1.25G slots allow for daisy-chaining for long-range IP surveillance

Specifications:

Standards and Certifications

• 802.3af / 802.3at / 802.3bt
• CE, FCC, VCCI, C-Tick Class A
• EN62368-1, EN61000-4-5

General

• Number of Network Ports: 8
• Number of PoE+ Network Ports: 4
• Number of RJ45 Gigabit Ports: 2
• Number of SFP Ports: 2 x 1.25G
• Data transfer rate: 10/100/1000 Mbps
• Mac table: 8K
• Jumbo frames: 9,216 Bytes
• Switching capacity: 16 Gbps
• Forwarding capacity: 11.904Mpps
• Weather rating: IP67
• Vandal proof: IK10
• MTBF (Hours): 131,455
• Operating Altitude: 2,000 m (6,562 ft)

Power

• Input Voltage: 100VAC ~ 240VAC, 280VAC for up to 4hr, 300VAC for up to 1min.
• Output Voltage Range / per PoE Port: 1-254 VDC, PoE IEEE 802.3af (Max. 15.4W) output, PoE+ IEEE802.3at, (Max. 30W) output
• PSE Power Pin Assignment: 12(-),36(+)
• System Power Consumption (without PoE): 5W
• PoE Output Power Budget: 150W
• Surge Protection per PoE Port: 6KV
• Surge Protection for AC power: 40KV

Mechanical & Environmental:

• Operating Temperature: -40°C~ 65°C (-40°F~ 149°F)
• Storage Temperature: -40°C~ 85°C (-40°F~ 185°F)
• Operating Humidity: 5% ~ 95% non-condensing

Dimensions (L x W x H): 2.42 x 9.68 x 4.65 inches

A minimum order amount of $50 is required in order to Maintain Wholesale Price

NEW IN THE BOX
