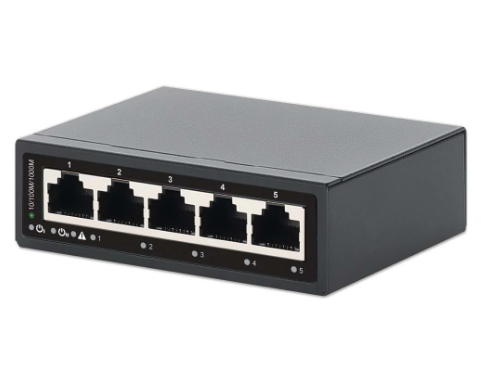

The rugged Intellinet 509480 Industrial 5-Port Gigabit Ethernet Switch, IIS-5G, with five 10/100/1000 Mbps RJ45 Ports, IP50-Rated Metal Housing, Redundant Power Supply, DIN-Rail Mount, and Wall-Mount Option. It is a compact networking solution for Industrial Environments that delivers high-performance networking in an industrial-grade form. Equipped with five auto-sensing 10/100/1000 Mbps RJ45 ports, this switch provides reliable, high-speed connectivity for a wide range of industrial devices and applications - from automation systems to IP surveillance and remote monitoring.

Features:

• Offers five Gigabit RJ45 Ethernet ports to provide data to connected devices
• 10/100/1000 auto-sensing ports that automatically detect optimal network speeds
• IP50 slim-type metal housing to withstand harsh industrial conditions
• Suitable for extreme operating temperatures of -40 to 75ºC (-40 to 167ºF)
• Option for DIN-rail installation
• Rated for shock (IEC 60068-2-27), freefall (IEC 60068-2-31) and vibration (IEC 60068-2-6)
• 20 Gbps switch fabric / switching capacity
• Two redundant DC inputs (9 - 60 V) with I/O terminal block
• ESD protection up to 8 kV (air) and 4 kV (contact)
• Port surge protection up to 6 kV
• Grounding point to protect equipment from external electrical surges
• Auto-MDIX and NWay auto-negotiation support on all RJ45 ports
• Supports 2k MAC address entries with Auto-Learning and Auto-Aging
• Buffer memory of 128 kBytes
• Supports jumbo frames up to 9 kBytes
• Store and forward switching architecture
• Full/half duplex operation
• IEEE 802.3x flow control for full duplex
• LEDs for power, alarm, and LAN
• Fanless design for silent operation
• Requires additional industrial power supply (not included)
• Wall-mountable for network areas with limited floor space (wall-mounting hardware not included)
• Fully TAA-compliant

Specifications:

Standards

• IEEE 802.3 (10Base-T Ethernet)
• IEEE 802.3u (100Base-TX Fast Ethernet)
• IEEE 802.3ab (Twisted Pair Gigabit Ethernet)
• IEEE 802.3x (Flow control for full-duplex mode)



General

• Media support:
  - 10Base-T Cat5e/6/6a UTP/STP RJ45
  - 100Base-TX Cat5e/6/6a UTP/STP RJ45
  - 1000Base-T Cat5e/6/6a UTP/STP RJ45
• Packet filter/forwarding rate:
  - 1,488,096 pps (1000 Mbps)
  - 148,09 pps (100 Mbps)
  - 14,880 pps (10 Mbps)
• MAC address table: 2k
• Buffer memory: 128 KB
• Backplane speed / switching capacity: 20 Gbps
• Switch architecture: store and forward
• Certifications: FCC, CE, RoHS, REACH, UKCA, TAA
• MTBF: 1M hours



Electrical

• Via DC industrial power supply (not included), 4-pin terminal block
  - Input: 9.0 - 60.0 V, up to 2.3 A
• Power consumption
  - 3.21 W (max.)



LEDs

• Power
• Alarm
• LAN



Terminal block Pinout
- PWR1: Pin 1 (V+) and Pin 2 (V-)
- PWR2: Pin 3 (V+) and Pin 4 (V-)

Physical

• IP50-rated metal housing
• DIN rail: In accordance with IEC/EN 60715 (top hat)
• Operating temperature: -40 - 75°C (-40 - 167°F)
• Storage temperature: -40 - 85°C (-40 - 185°F)
• Operating humidity: 10 - 95% RH, non-condensing
• Storage humidity: 10 - 95% RH, non-condensing
• Recommended AWG for terminal block: 16-26

Dimensions (L x W x H): 3.35 x 2.36 x 1.06 inches
