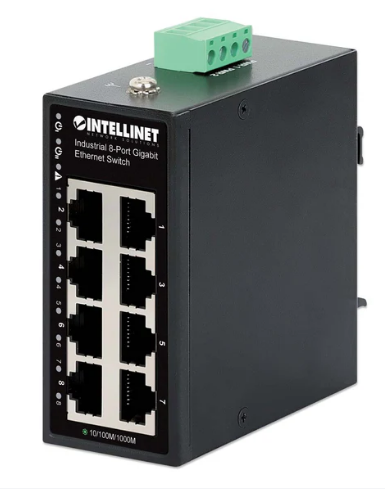

The high-performance Intellinet 509503 Industrial 8-Port Gigabit Ethernet Switch, IIS-8G is an Eight 10/100/1000 Mbps RJ45 Ports, IP50-Rated Metal Housing, Redundant Power Supply, DIN-Rail Mount, and Wall-Mount Option.

Features:

• Offers eight Gigabit RJ45 Ethernet ports to provide data to connected devices
• 10/100/1000 auto-sensing ports that automatically detect optimal network speeds
• IP50 slim-type metal housing to withstand harsh industrial conditions

Standards

• IEEE 802.3 (10Base-T Ethernet)
• IEEE 802.3u (100Base-TX Fast Ethernet)
• IEEE 802.3ab (Twisted Pair Gigabit Ethernet)
• IEEE 802.3x (Flow control for full-duplex mode)

General

• Media support:
  - 10Base-T Cat5e/6/6a UTP/STP RJ45
  - 100Base-TX Cat5e/6/6a UTP/STP RJ45
  - 1000Base-T Cat5e/6/6a UTP/STP RJ45
• Packet filter/forwarding rate:
  - 1,488,089 pps (1000 Mbps)
  - 148,809pps (100 Mbps)
  - 14,880 pps (10 Mbps)
• MAC address table: 4k
• Buffer memory: 192 KB
• Backplane speed/switching capacity: 16 Gbps
• Switch architecture: store and forward
• Certifications: FCC, CE, RoHS, REACH, UKCA, TAA
• MTBF: 1M hours



Electrical

• Via DC industrial power supply (not included), 4-pin terminal block
  - Input: 9.0 - 60.0 V, up to 2.3 A

Power consumption
- 4.722 W (max.)

LEDs

• Power
• Alarm
• LAN

Dimensions: 3.35 (L) x 3.15 (W) x 1.54 (H) inches
